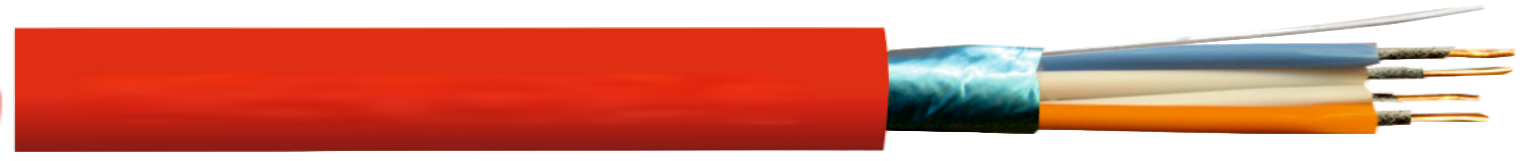

HTKSHekw FE180/PH120/E90 Halogen-Free Fire-Resistant Telecommunication Cable
Indoor Use with Enhanced Flame Retardance, Low Smoke Emission, and Reliable Signal Integrity for Fire Protection and Control Systems
$15.00
Application:
Fire resistant, halogen-free telecommunication cables designed for emergency lighting installations, alarm- , signalling-, and teletransmission systems, in sound alarm systems as well as in fire warning systems, fire automation and other safety ensuring installations. Static screen (ekw) protects the cable against interferences of external magnetic fields. Under fire conditions those cables ensure proper operation of installations for at least 120 minutes (PH120) and durability of conductors insulation for 180 minutes (FE180). During burning cables do not emit corrosive gases or dense smoke. Cables are suitable for fixed installations inside buildings. HTKSHekw FE180/PH90 (E90) cables have been tested in accordance with the requirements of DIN 4102 p.12 and can be installed in E90 cable support systems as their elements (installation on clamps located every 30cm and 60cm).
Technical data:
Thermal parameters:
Temperature range:
fixed installation: -30 °C to 80 °C
min. instalation temp: -5 °C
Electrical parameters:
Operating voltage: 225 V
Test voltage:AC 1500 V；DC 2250 V
Insulation resistance (minimum):500 MΩ*km
Pair loop resistance at 20 °C (maximum):
0,8 mm - 75 Ω/km
1,0 mm - 48 Ω/km
1,4 mm - 26,6 Ω/km
1,8 mm - 14,96 Ω/km
2,3 mm - 9,6 Ω/km
2,8 mm - 6,4 Ω/km
Mutual capacitance of pair at 1 kHz (maximum): 150 nF/km
Mechanical parameters:
Min. bending radius: 10 x Ø
Design: | |
Cores: Insulation: Core colours: Core arrangement: Wrapping: Screen: Outer sheath: | solid copper conductor class 1, acc. to EN 60228 mica tape wrapping and halogen-free compound acc. to PN-T-90321:1992 cores twisted in pairs polyester tape aluminium backed polyester type with tinned copper drain wire 0,4mm diameter halogen-free polymer compound; colour: red |
