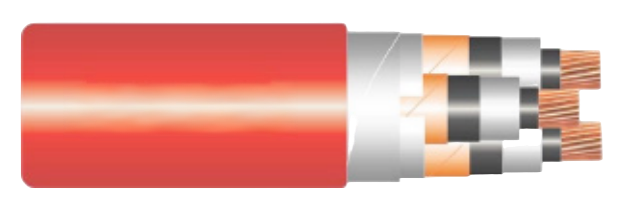

Copper Cable - Non-armoured XLPE Insulation 3.6/6(7.2) - 18/30(36) KV 3C CU/XLPE/CTS/PVC – N2XSEY
Multi-core copper cable with CTS screening for power distribution
$25.00
CONSTRUCTION
Conductor
: Plain annealed copper wire
according to IEC 60228
- Class 2 for Stranded Compacted Conductors
Conductor Screen
:Extruded Semi Conductive Compound
Insulation
:XLPE Compound
Insulation Screen
:Extruded Semi Conductive Compound
Metallic Screen
: Plain Annealed Copper Tapes
Filler
: PP Yarn Filler
Sheath
: PVC Compound ST 2
APPLICABLE STANDARDS
SNI IEC 60502-2, IEC 60502-2 IEC 60228 Design and Test Guidelines Conductor
