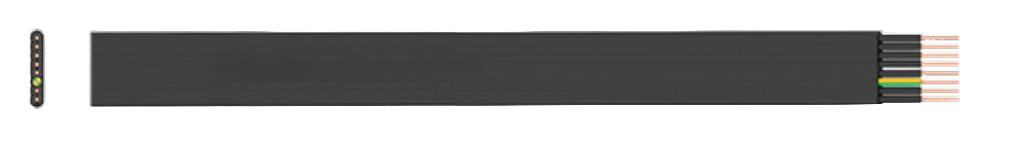

Flat Festoon Cable NGFLGOEU – 300/500 V
Flexible cable for machine tools, conveyors, and trolley systems in indoor and outdoor use
$7.00
APPLICATION：
For the connection of mobile parts of machine tools, conveyor plants and large-scale equipment, if the cable is exposed to bends in only one level (cable trolley). In dry, damp and wet rooms as well as outdoors.
CHARACTERISTICS
Voltage Rating Uo/U 300/500V
Temperature Rating
Fixed: -40ºC to +90ºC
Flexed: -35ºC to +90ºC
Minimum Bending Radius
Fixed: 5 x overall diameter
Moving: 10 x overall diameter
CONSTRUCTION
Conductor
Class 6 Extra Finely Stranded Bare Copper
Insulation
EPR (Ethylene Propylene Rubber)
Sheath
CR (Chloroprene Rubber)
Core Identification
4 cores: Green/Yellow Brown Black Grey
5 cores: Green/Yellow Blue Brown Black Grey
7 cores and over: Black with white numbers Green/Yellow
Sheath Colour
● Black
STANDARDS
VDE 0250 T.809, , VDE 0293 (HD 308)
Flame Retardant according to VDE 0482-332-1-2,
IEC 60332-1-2
Oil Resistant according to EN 60811-404
UV Resistant, Ozone Resistant
