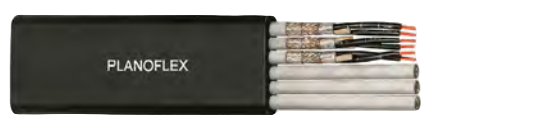

Flat Power Cable - NGFLGOEU
Low voltage festoon solution for material handling and machine tool connections
$45.00
Application
Flexible low voltage power and control cable, for use on festoon systems and for connecting moveable parts of machine tools, material handling equipment, etc., associated with high mechanical stresses and frequent bending during operation and for bending in one plane only.
Design features
Conductor Eletrolytic copper, not tinned:
- up to 25 mm²: extremely finely stranded, class 6
- above 35 mm²: finely stranded, class 5
Insulation PROTOLON
Basic material EPR, Rubber compound 3GI3 (refer also to DIN VDE 0207, Part 20)
Core identification Up to 5 cores, colored: green/yellow (or black for version...-O) black, blue, brown, grey;
For more than 5 cores: black with white colored numbers
Individual screen Braid screen made of tinned copper wires, transfer impedance optimized at 30 MHz.
Surface covered: approx. 60% for shielded cores, approx. 80% for twisted and shielded pairs.
Core arrangement Parallel, for more than 12 cores: parallel bundles
Outer sheath Basic material CR, Rubber compound 5GM3 (refer also to DIN VDE 0207, Part 21)
Colour: black

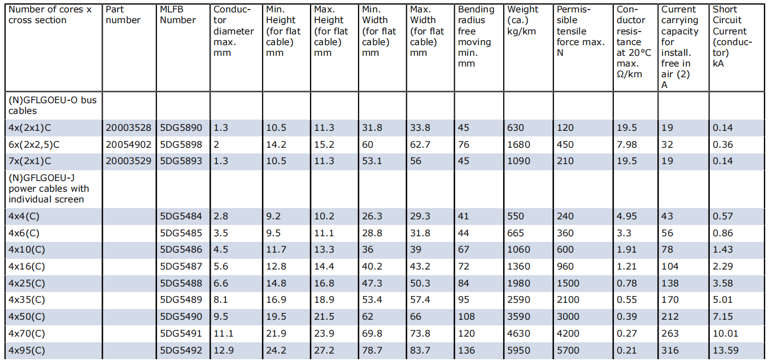

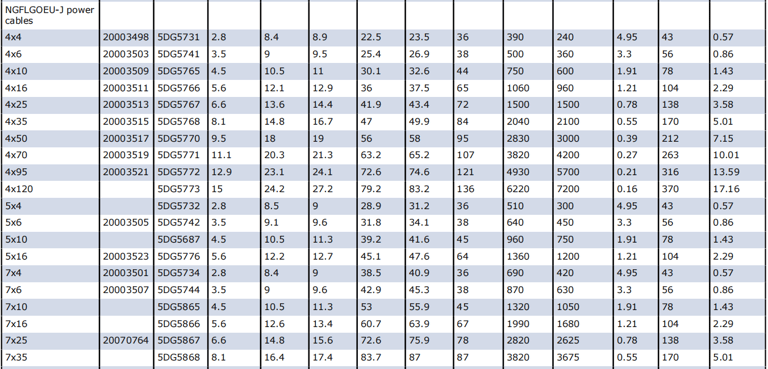

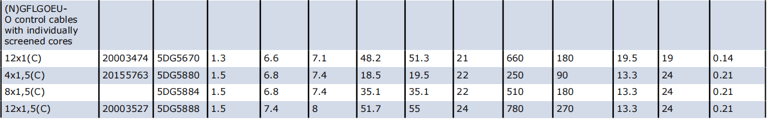

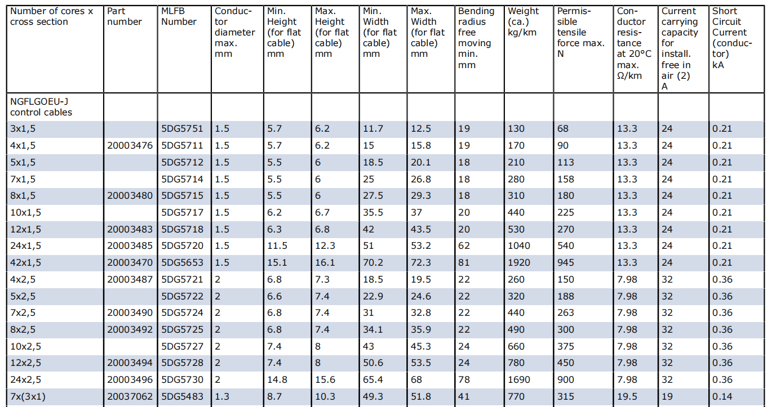

Global data |
|
Type designation | NGFLGOEU-J/-O |
Standard | DIN VDE 0250-809 |
Certifications / Approvals | VDE Marking; UL-File E 113313; GOST-R |
Electrical parameters
Rated voltage 300/500V (600V)
Max. permissible operating voltage AC 0.7/1.2 kV
Max. permissible operating voltage DC 0.9/1.8 kV
AC Test Voltage 2.5 kV (5 Min.)
Current Carrying Capacity description Acc. to DIN VDE 0298-4
Chemical parameters
Resistance to oil Acc. to DIN VDE 0473-404, paragraph 10
Weather resistance Unrestricted use outdoors and indoors, resistant to ozone, UV and moisture.
Thermal parameters
Max. permissible temperature at conductor 90 °C Max. short circuit temperature of the conductor 250 °C
Ambient temperature for fixed installation min -50 °C ; max +80 °C Ambient temperature in fully flexible operation min -35 °C ; max +80 °C
Mechanical parameters
Max. tensile load on the conductor 15 N/mm²
Torsional stress Not allowed
Min. bending radius Acc. to DIN VDE 0298 part 3
Travel speed - Gantry (reeling operation): no application;
- Trolley (festoon system): guidance value up to 180m/min (it is recommended to consult the manufacturer for speeds beyond 180m/min)
