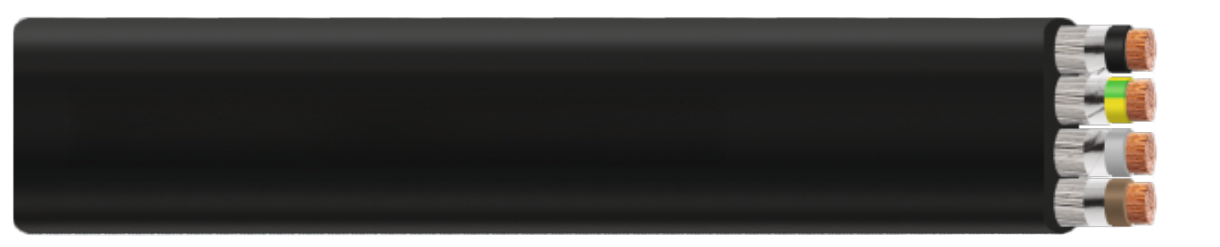

Flat Rubber Festoon Cable M(StD)HOEU – 0.6/1 kV
Screened flexible cable for hoisting, transport, and machine tools with oil and UV resistance
$10.00
Application: | |
Flexible, flat rubber cables designed for festoon applications, especially for hoisting gears transportation systems as well as for machine tools at medium mechanical stresses and for strong bends in one plane. Cables are suitable for both indoor and outdoor applications where resistance to oils, fats and chemicals is required. | |
Chemical parameters: | |
Resistance to oil: | DIN EN/IEC 60811-404 |
Behaviour in case of fire: | DIN EN/IEC 60332-1-2 |
Weather resistance: | unrestricted use indoors, outdoors, resistance to ozone, UV and moisture |
Technical data:
Thermal parameters: Ambient temperature: |
fixed installation: -40 °C to 80 °C festoon operation: -30 °C to 80 °C |
Max. permissible conductor temp.: 90 °C |
Max. short-circuit temp. at conductor: 250 °C |
Mechanical parameters: |
Max. tensile load on conductor: 15 N/mm² Trolley travel speed: up to 180 m/min |
Design:
Conductors: | plain copper acc. to DIN EN/IEC 60228: - ≤ 25 mm², class 6 – finest stranded wires - ≥ 35 mm², class 5 – fine stranded wires |
Insulation: | EPR compound type 3GI3 acc. to DIN VDE 0207-20, core identification acc. to DIN VDE 0293-308 |
Core arrangement: | cores/pairs arranged in parallel; pairs twisted with fillers |
Individual screen: | aluminium backed polyester foil and spinning of tinned copper wires, coverage >85% |
Outer sheath: | heavy duty rubber compound type 5GM3 acc. to DIN VDE 0207-21; colour: black, inkjet marking |
