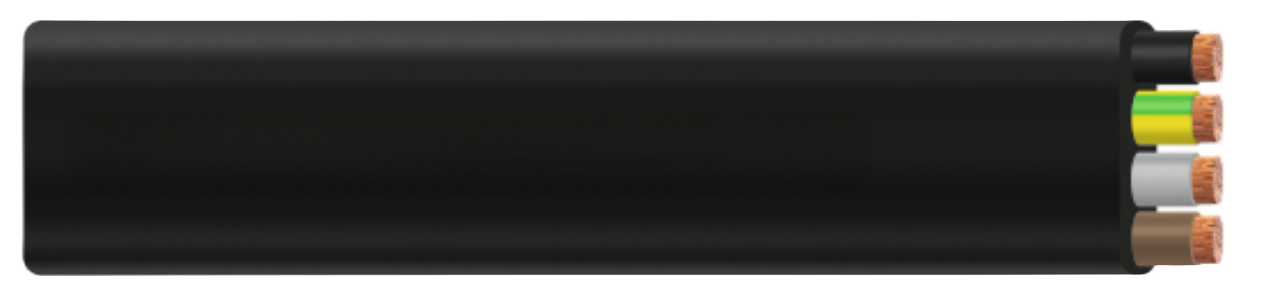

Flexible Flat Rubber Cable (N)GFLGOEU-J – 0.6/1 kV
High-flexibility crane and festoon cable for moving machinery with UV, oil, and flame resistance
$3.00
Application: |
These cables are designed for connection of moving parts of machine tools, conveyorsand large equipment, when the cables are subjected to bending in only one plane e.g. festoon systems. Suitable for use in dry, damp and wet rooms as well as outdoors. In case of high mechanical stresses, e.g. in high dynamic tensile forces, permissible loads are to be determined on a case-by-case basis. |
Technical data: |
|
Thermal parameters: Ambient temperature: fixed installation: -40 °C to 80 °C festoon operation: -30 °C to 80 °C Max. permissible conductor temp.: 90 °C Max. short-circuit temp. at conductor: 250 °C Mechanical parameters: Max. tensile load on conductor: 15 N/mm² Trolley travel speed: up to 180 m/min |
Design: |
|
Conductors: plain copper acc. to DIN EN/IEC 60228: - ≤ 25 mm², class 6 – finest stranded wires - ≥ 35 mm², class 5 – fine stranded wires Insulation: EPR compound type 3GI3 acc. to DIN VDE 0207-20,core identification acc. to DIN VDE 0293-308 Outer sheath: heavy duty rubber compound type 5GM3 acc. to DIN VDE 0207-21; colour: black, inkjet marking |
