Flexible Medium Voltage Mining Power Cable (N)TSKCGECWOEU-CH: UV-Resistant, High-Oil-Resistance, Drag-Chain Ready Solution

Introduction

The (N)TSKCGECWOEU-CH represents a cutting-edge solution in mining power cable technology, specifically engineered for the demanding environments of underground mining operations. This flexible medium voltage mining power cable combines advanced materials science with robust construction to deliver reliable power transmission in some of the world's most challenging industrial applications.

Underground mining operations require power supply systems that can withstand extreme conditions while maintaining operational integrity. From coal extraction facilities to mineral processing operations, mining equipment such as coal cutters, conveyor systems, and mobile machinery demand power cables that can endure constant mechanical stress, chemical exposure, and environmental extremes. The (N)TSKCGECWOEU-CH cable addresses these critical requirements through its sophisticated design and comprehensive compliance with international mining standards.

The importance of reliable power supply in underground mining cannot be overstated. Equipment failures due to cable breakdown can result in costly production delays, safety hazards, and extensive maintenance operations. This specialized underground mining cable is designed to minimize such risks through enhanced durability, superior environmental resistance, and optimized construction for drag-chain applications.

Key Features and Specifications

Electrical Characteristics

The (N)TSKCGECWOEU-CH operates at a rated voltage of 4.2/7.2 kV with a maximum permissible operating voltage of 3.6/6 kV in AC systems, making it suitable for medium voltage applications across various mining equipment configurations. The cable's electrical design incorporates advanced field control through inner and outer semiconductive rubber layers, ensuring optimal voltage distribution and electrical integrity throughout its operational life.

The conductor design features finely stranded tinned copper conductors manufactured to class 6 specifications according to EN 60228 and DIN VDE 0295 standards. This precise stranding classification ensures maximum flexibility while maintaining excellent electrical conductivity. The tinning process provides enhanced corrosion resistance, particularly important in the humid and chemically aggressive environments typical of underground mining facilities.

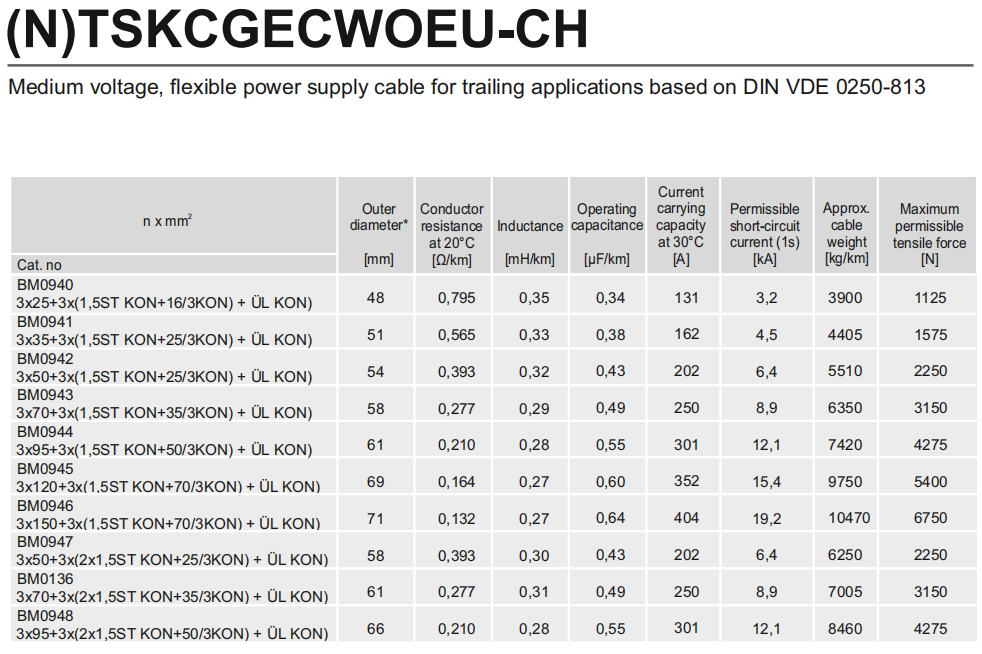

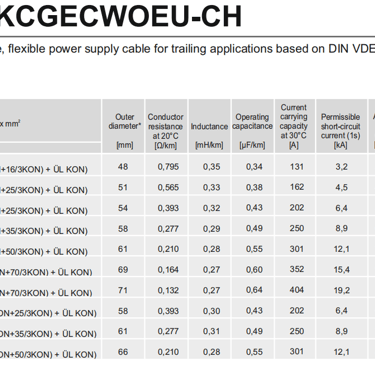

Current-carrying capacities range from 131 amperes for the 25mm² configuration to 404 amperes for the 150mm² variant, accommodating diverse power requirements across different mining applications. The cable's low conductor resistance, ranging from 0.795 Ω/km for the smallest configuration to 0.132 Ω/km for the largest, ensures efficient power transmission with minimal energy losses.

Thermal Performance

The thermal characteristics of this drag-chain power cable are specifically optimized for mining environments. For fixed installation applications, the cable operates reliably across a temperature range of –40°C to 90°C, while flexible operation maintains performance from –25°C to 80°C. This broad temperature tolerance ensures consistent operation whether deployed in permanently installed systems or mobile equipment applications.

The maximum permissible conductor temperature of 90°C provides substantial operating headroom under normal conditions, while the short-circuit temperature rating of 250°C ensures safe performance during fault conditions. These thermal specifications make the cable particularly suitable for high-load mining equipment that generates significant heat during operation.

Mechanical and Environmental Resistance

UV resistance represents a crucial feature for mining operations that may involve surface installations or equipment movement between underground and surface locations. The cable's construction provides unrestricted use both indoors and outdoors, with specific resistance to ozone, UV radiation, and moisture exposure.

The Limiting Oxygen Index (LOI) exceeding 29 demonstrates superior fire behavior characteristics, crucial for underground mining safety protocols. This LOI > 29 drag-chain compatible power cable meets stringent fire safety requirements while maintaining operational flexibility. The enhanced fire resistance is complemented by compliance with EN 60332-1-2 standards, ensuring reliable performance in fire-risk environments.

Enhanced oil resistance per IEC 60811-404 standards addresses the prevalent hydraulic fluid and lubricant exposure common in mining equipment. This UV-resistant mining cable maintains its integrity when exposed to various petroleum-based products, extending service life and reducing maintenance requirements.

Mechanical strength parameters include a tensile load capacity of 15 N/mm² and a minimum bending radius calculated according to DIN VDE 0298, Part 3, specifications. For applications involving tensile loads, the minimum bending radius increases to 2.3 times the cable diameter with loads limited to 5 N/mm². These parameters ensure reliable operation in drag-chain systems where cables experience continuous flexing and movement.

Construction Details

Multi-core Arrangement and Inner Components

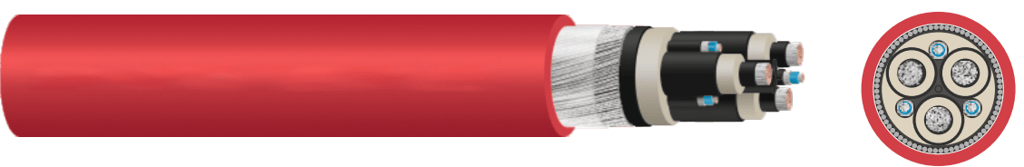

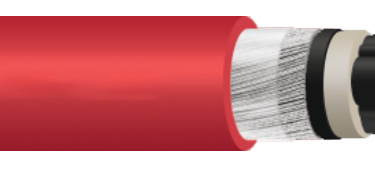

The cable's sophisticated construction begins with three power conductors arranged in an optimized lay configuration. Each conductor features dual semiconductive rubber layers providing electrical field control, essential for medium voltage applications. The semiconductive layers ensure uniform electric field distribution, preventing corona discharge and extending insulation life.

Concentric control and protective conductor elements are strategically positioned in the outer interstices of the power conductor arrangement. These concentric tinned copper and copper-tin alloy wires serve dual functions: providing control circuit connectivity and equipment grounding protection. The spiral application of these conductors maintains flexibility while ensuring reliable electrical continuity during cable movement.

Signal monitoring conductors consisting of spirally applied galvanized steel and tinned copper wires are integrated in a vulcanized bond between the inner and outer sheaths. This monitoring system enables real-time cable condition assessment, crucial for preventive maintenance in mining operations where cable failure can have severe consequences.

EPR (Ethylene Propylene Rubber) insulation with improved electrical and mechanical characteristics forms the primary insulation system. This compound, meeting DIN VDE 0207, Part 20 specifications, provides excellent dielectric properties while maintaining flexibility across the specified temperature range.

Sheathing Materials

The inner sheath utilizes GM1b compound according to DIN VDE 0207, Part 21 specifications. This material provides an additional moisture barrier and mechanical protection for the internal cable components. The GM1b compound maintains its properties across the cable's operating temperature range while providing resistance to chemical exposure.

The outer sheath features 5GM5 compound with enhanced mechanical characteristics, also conforming to DIN VDE 0207, Part 21 standards. The distinctive red coloring aids in cable identification and safety protocols. This outer sheath formulation provides superior abrasion resistance, essential for drag-chain applications where cables experience continuous contact with guide systems.

Applications and Installations

Underground Mining Environments

Coal cutters and mobile mining machinery represent primary applications for this specialized cable. These machines operate in continuous motion, requiring power cables that can withstand constant flexing, torsion, and tensile stresses. The cable's construction specifically addresses these mechanical demands while maintaining electrical integrity.

Cable chain systems provide protective housing for trailing cables, shielding them from direct mechanical contact with mine floors and equipment. The (N)TSKCGECWOEU-CH's design parameters optimize compatibility with these protective systems, ensuring reliable operation throughout the equipment's duty cycle.

Mining environments present unique challenges including dust exposure, moisture, temperature fluctuations, and potential chemical contact. This underground mining cable enhanced oil resistance capability addresses these concerns comprehensively, maintaining performance despite exposure to hydraulic fluids, cutting oils, and other industrial chemicals common in mining operations.

Flexible Connections and Drag-Chain Systems

Drag-chain applications impose specific mechanical requirements on power cables. The minimum distance requirement of 20 times the cable diameter for S-type directional changes ensures proper cable management in these systems. This parameter prevents excessive stress concentration that could lead to premature failure.

The cable's current-carrying capacity ratings account for the thermal effects of flexible operation, ensuring safe performance even under continuous movement conditions. The optimized lay length of the conductor arrangement minimizes internal stress during flexing, extending cable life in demanding applications.

Installation considerations include proper strain relief and mechanical support at connection points. The cable's maximum permissible tensile forces, ranging from 3,900 N to 10,470 N depending on configuration, provide guidelines for proper mechanical design of installation systems.

Compliance and Standards

Regulatory Approvals and Classifications

EN 50575 (CPR 305/2011) classification ensures the cable meets European Construction Products Regulation requirements for fire performance in construction works. This compliance is particularly relevant for permanent installations in mining infrastructure where fire safety regulations are stringent.

EN 60332-1-2 fire behavior compliance demonstrates controlled flame propagation characteristics. The cable's design prevents flame spread along its length, crucial for maintaining escape route integrity in underground mining environments.

RoHS 2015/863/EU compliance ensures the cable's environmental compatibility by restricting hazardous substances in its construction materials. This compliance supports sustainable mining practices and facilitates end-of-life disposal considerations.

Additional standards compliance includes DIN VDE 0250-813 for medium voltage flexible cables and various IEC standards for electrical and mechanical performance. These comprehensive approvals ensure global applicability and regulatory acceptance across different mining jurisdictions.

Technical Performance and Reliability

The cable's electrical parameters demonstrate superior performance characteristics. Operating capacitance values ranging from 0.27 μF/km to 0.64 μF/km enable compatibility with various control and protection systems. Inductance values between 0.28 mH/km and 0.55 mH/km ensure stable electrical behavior across the frequency spectrum relevant to mining equipment operation.

Short-circuit current capabilities from 3.2 kA to 19.2 kA for one-second duration provide robust fault handling characteristics. These ratings ensure the cable can withstand electrical fault conditions without compromising safety or requiring immediate replacement.

Weight considerations ranging from 6,250 kg/km to 10,470 kg/km for various configurations impact installation planning and support structure design. The cable's weight distribution reflects its robust construction while maintaining reasonable handling characteristics for field installation.

Frequently Asked Questions

Q: What makes this cable suitable for drag-chain applications compared to standard mining cables?

A: The (N)TSKCGECWOEU-CH features optimized conductor lay length, enhanced mechanical properties including specific bending radius requirements, and superior outer sheath compounds that resist abrasion from continuous movement in drag-chain systems. The cable's construction addresses the unique stresses of repetitive flexing while maintaining electrical integrity.

Q: How does the LOI > 29 rating benefit underground mining safety?

A: The Limiting Oxygen Index exceeding 29 indicates that the cable requires a minimum oxygen concentration of 29% to sustain combustion, significantly higher than the approximately 21% oxygen content in normal air. This characteristic dramatically reduces fire propagation risk in underground environments where oxygen levels may be controlled and evacuation is challenging.

Q: Can this cable handle exposure to mining chemicals and hydraulic fluids?

A: Yes, the cable's enhanced oil resistance per IEC 60811-404 standards specifically addresses exposure to petroleum-based products common in mining operations. The outer sheath formulation and internal sealing systems prevent chemical penetration that could compromise electrical performance or mechanical integrity.

Q: What temperature extremes can the cable withstand during operation?

A: For fixed installations, the cable operates reliably from –40°C to 90°C, while flexible applications maintain performance from –25°C to 80°C. These ranges accommodate both permanent underground installations and mobile equipment that may experience temperature variations during operation cycles.

Conclusion

The (N)TSKCGECWOEU-CH represents a comprehensive solution for demanding underground mining power applications. This 3.6/6 kV tinned copper class 5 mining cable combines advanced materials technology with proven engineering principles to deliver reliable performance in the world's most challenging industrial environments.

Key benefits include exceptional environmental resistance through UV protection and enhanced oil resistance, superior fire safety characteristics with LOI > 29 performance, and optimized mechanical properties for drag-chain compatibility. The cable's comprehensive standards compliance ensures regulatory acceptance while its robust construction minimizes total cost of ownership through extended service life and reduced maintenance requirements.

For mining operations and original equipment manufacturers seeking reliable power transmission solutions, the (N)TSKCGECWOEU-CH offers proven technology backed by comprehensive testing and certification. Its specialized design addresses the unique challenges of underground mining while providing the flexibility and durability essential for modern mining equipment operations.

The cable's technical specifications, from its finely stranded tinned copper conductors to its advanced sheathing compounds, reflect decades of engineering expertise focused on mining industry requirements. This flexible medium voltage mining power cable UV resistant design ensures continued reliable operation while supporting the safety and productivity demands of contemporary mining operations.
