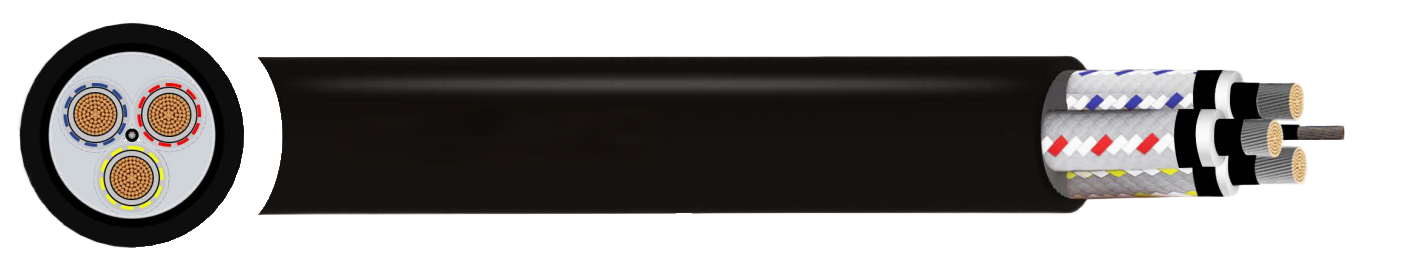

Flexible Mining Cable with Central Pilot - Type 409
Copper screened solution for machinery ranging from draglines to handheld tools
$30.00
APPLICATION For use as flexible feeder cable to machinery. More suitable as a trailing cable. Larger cables for power supply to draglines, shovels and drills. Smaller sizes used for drills, held hand tools and equipment. |
CHARACTERISTICS Voltage Rating Type 409.1 - 1.1kV Type 409.3 - 3.3kV Type 409.6 - 6.6kV Type 409.11 - 11kV Type 409.22 - 22kV Temperature Rating -25℃ to +90℃ |
CONSTRUCTION
Conductor
Tinned annealed copper wires
Separator/Screen
1.1kV: Paper separator
For other nominal voltages semi-conductive tape+ thermosetting compound over conductors
Insulation
EPR (Ethylene Propylene Rubber) type R-EP-90
Insulation Screen
1.1kV: Synthetic tape
From 3.3kV: Semi-conductive thermosetting compound
Screen
Tinned copper/polyamide braid
Cable Assembly
Three screened power laid up with right hand direction on cradle separator with central pilot core
Sheath
HD-PCP (Heavy Duty Polychloroprene) - extra heavy duty, oil resistant and flame retardant
Sheath Colour
Black
STANDARDS
AS/NZS 1125:2001, AS/NZS 2802:2000, Water resistant
Flame retardant,
UV, sunlight, ozone and oil resistant
