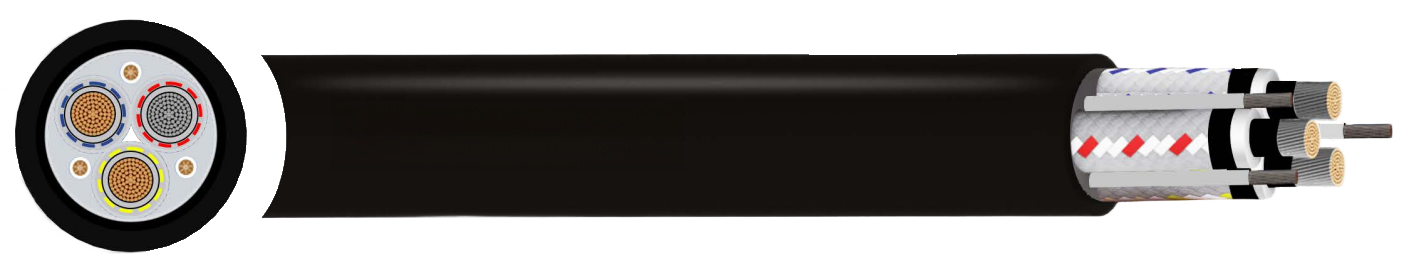

Flexible Mining Feeder Cable - Type 240
Australian standard with three pilot cores for machinery and longwall applications
$35.00
APPLICATION
Australian standard cable for use as flexible feeder cable to machinery or longwall supply and other industrial applications within the mining industry.
CHARACTERISTICS
Voltage Rating
Type 240.1 - 1.1kV
Type 240.3 - 3.3kV
Type 240.6 - 6.6kV Type 240.11 - 11kV
Temperature Rating - 25oC to +90oC
CONSTRUCTION
Conductor
Tinned annealed copper wires
Separator/Conductor Screen
1.1kV: Paper separator
Other voltages: semi-conductive thermosetting compound
Insulation
EPR (Ethylene Propylene Rubber) type R-EP-90
Insulation Screen
1.1kV: Synthetic tape
From 3.3kV: Semi-conductive thermosetting compound
Screen
Tinned copper/polyamide braid
Interstitial Pilots
EPR covered flexible stranded tinned Copper
Cable Assembly
3x screened power cores with right hand lay up on cradle separator with 3x pilot cores
Cradle Separator
Semi-conductive thermosetting compound
Sheath
HD-PCP (Heavy Duty Polychloroprene) - extra heavy duty, oil resistance and flame retardant.
Optional open polyamide braid between layer of sheathing
Sheath Colour
● Black
STANDARDS
AS/NZS 1802:2003, AS/NZS 1125:2001, Water resistant.
Flame retardant.
UV, sunlight, ozone and oil resistant
