Flexible Power Supply Cable NTSCGEWOEU-TR for Open-Pit Mining Equipment | Ultra-Durable Trailing Cable

Introduction

The backbone of any successful open-pit mining operation lies in its ability to maintain continuous, reliable power supply to massive equipment operating under the harshest industrial conditions. The NTSCGEWOEU-TR flexible power supply cable represents a pinnacle of engineering excellence, specifically designed to meet the extreme demands of large-scale mining operations where conventional cables simply cannot survive.

Open-pit mining environments subject electrical infrastructure to unprecedented challenges. Equipment such as draglines, shovels, and excavators must operate continuously in conditions characterized by extreme mechanical stress, abrasive materials, temperature fluctuations, chemical exposure, and constant movement. The failure of a power supply cable in such operations can result in catastrophic downtime, costing mining companies hundreds of thousands of dollars per hour in lost production.

The NTSCGEWOEU-TR cable addresses these critical challenges through innovative design and premium materials. This medium voltage flexible cable delivers exceptional performance in trailing applications, ensuring that mining operations can maintain their demanding schedules while minimizing the risk of power-related failures. Its robust construction and compliance with international standards make it an essential component for mining companies seeking to maximize operational efficiency and safety.

Key Features and Specifications

Medium Voltage Rating and Insulation System

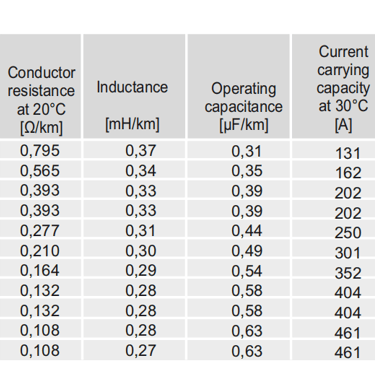

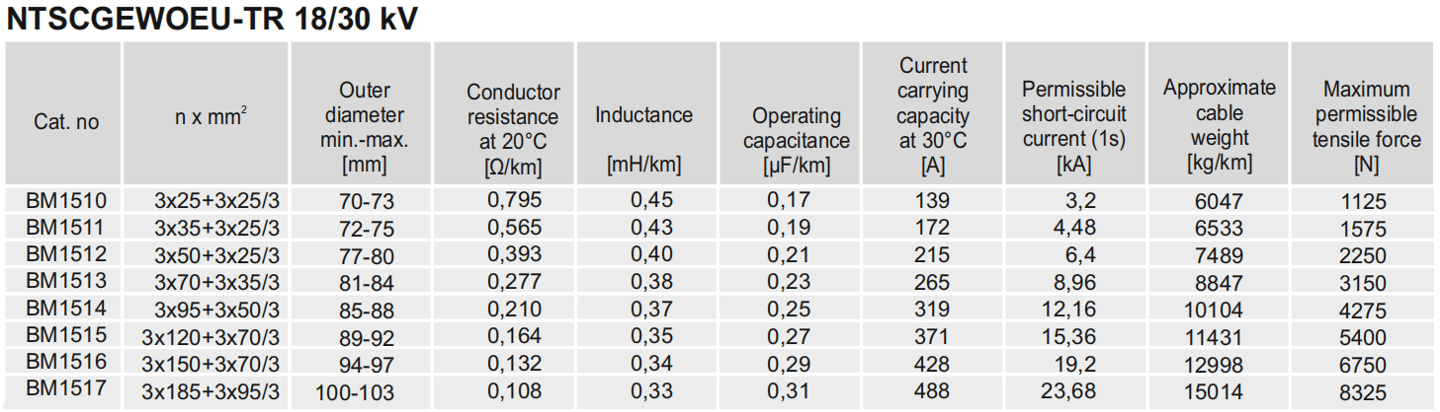

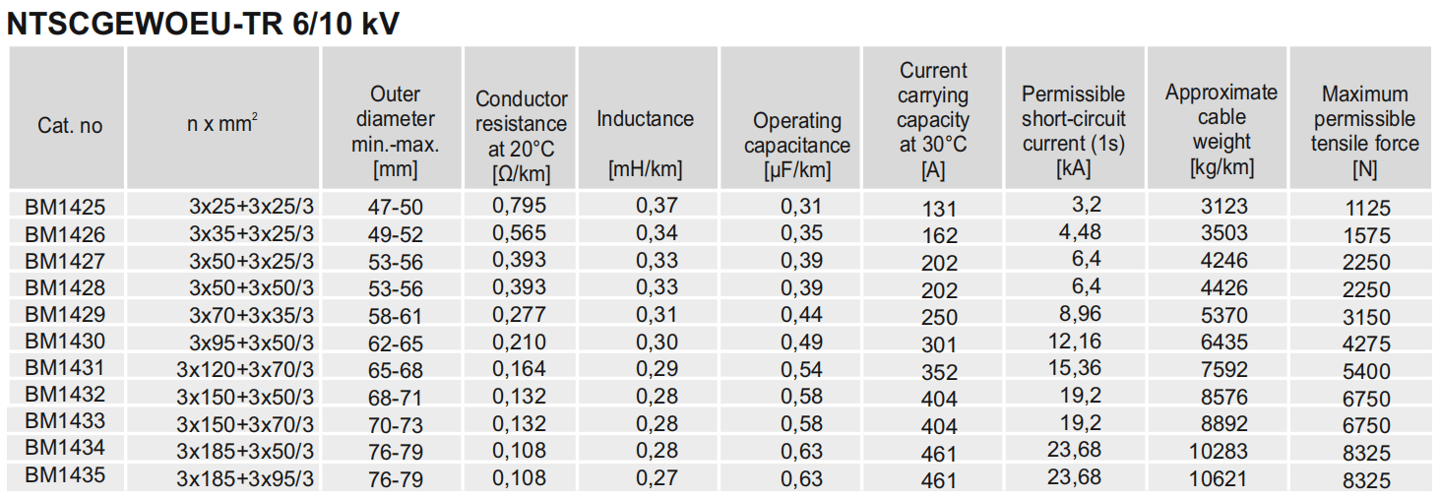

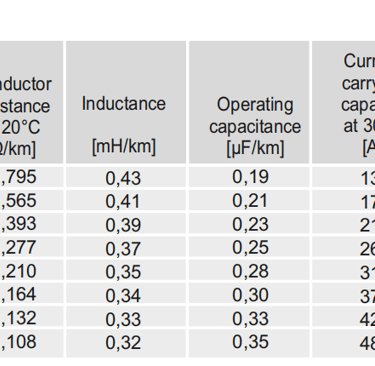

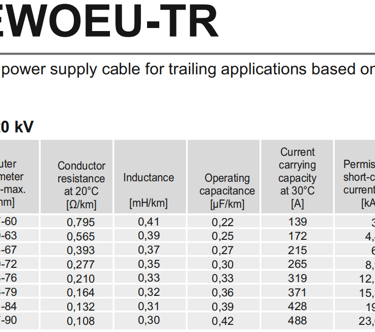

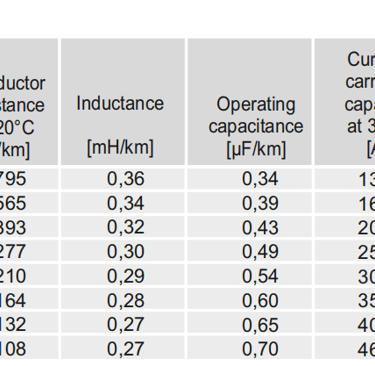

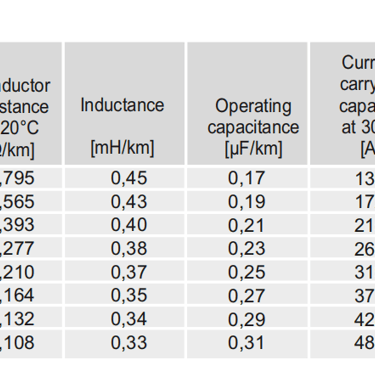

The NTSCGEWOEU-TR cable is engineered as a medium voltage flexible power supply cable for open-pit mining applications, offering multiple voltage ratings to accommodate various operational requirements. The cable is available in configurations ranging from 3.6/6 kV to 18/30 kV, providing flexibility for different equipment specifications and power distribution systems.

The insulation system incorporates advanced EPR compound technology, featuring a three-layer design that includes inner and outer semi-conductive stress control layers. This sophisticated insulation system ensures optimal electrical performance while providing superior protection against electrical stress concentrations that could lead to premature cable failure. The EPR compound, manufactured to type 3GI3 specifications according to DIN VDE 0207-20, offers excellent dielectric properties and long-term stability under harsh operating conditions.

High Mechanical Stress and Abrasion Resistance

One of the most critical aspects of the NTSCGEWOEU-TR design is its exceptional ability to withstand mechanical stress. The cable features a maximum tensile load capacity of 15N/mm² per conductor, enabling it to handle the severe pulling and stretching forces encountered during trailing operations. This high mechanical stress cable for mining applications incorporates specialized reinforcement elements that distribute loads evenly across the cable structure.

The abrasion-resistant trailing cable for draglines and shovels benefits from a high-tech, tear-resistant reinforcing grid tape that acts as a protective barrier against sheath movement while providing protection from both transverse and longitudinal stress. This reinforcement system is crucial for maintaining cable integrity during the constant flexing and movement associated with mobile mining equipment.

Temperature Performance Excellence

Operating in open-pit mining environments means exposure to extreme temperature variations. The NTSCGEWOEU-TR cable demonstrates exceptional temperature performance, with an operating range from -50°C to 90°C for fixed installations and -35°C to 80°C for flexible operations. This wide temperature tolerance ensures reliable performance across diverse geographical locations and seasonal variations.

The cable's maximum permissible conductor temperature of 90°C, combined with its ability to withstand short-circuit temperatures up to 250°C at the conductor, provides substantial safety margins for abnormal operating conditions. This temperature resilience is particularly important in mining operations where equipment may be subjected to varying load conditions and environmental temperature extremes.

Comprehensive Environmental Resistance

The flexible cable resistant to oil, UV, and moisture incorporates multiple protective features designed to withstand the harsh chemical and environmental conditions prevalent in mining operations. The cable demonstrates excellent resistance to oil exposure, meeting DIN EN/IEC 60811-404 standards, which is crucial given the prevalence of hydraulic fluids and lubricants in mining equipment.

UV resistance ensures that cable performance remains consistent even when exposed to intense sunlight during surface operations. The cable's ozone resistance prevents degradation from atmospheric pollutants, while its moisture resistance protects against water ingress that could compromise electrical performance or lead to corrosion of internal components.

Application Scenarios

Trailing Operations for Draglines and Shovels

The primary application for the NTSCGEWOEU-TR cable involves trailing operations where large mining equipment requires flexible power connections that can accommodate continuous movement. Draglines, which are among the largest mobile land machines in the world, depend on reliable trailing cables to maintain power while excavating overburden and ore materials across vast mining areas.

Electric shovels, another critical component of open-pit mining operations, require trailing cable for mining equipment that can withstand the repetitive stress cycles associated with loading and dumping operations. These machines operate under extreme duty cycles, often working 24 hours per day, making cable reliability absolutely essential for maintaining production schedules.

The NTSCGEWOEU-TR cable's design specifically accommodates the torsional stresses encountered in these applications, with a tolerance of ±100°/meter. This torsional flexibility ensures that the cable can handle the twisting motions inherent in equipment operation without developing stress concentrations that could lead to failure.

Performance in Harsh Mining Environments

Open-pit mining environments present unique challenges that distinguish them from other industrial applications. The combination of dust, debris, chemical exposure, temperature extremes, and mechanical abuse requires specialized cable designs that can maintain performance over extended periods.

The heavy-duty rubber sheath mining cable construction of the NTSCGEWOEU-TR provides exceptional protection against these environmental hazards. The sheath material, manufactured to type 5GM5 specifications according to DIN VDE 0207-21, offers improved tear and abrasion resistance compared to standard industrial cables. The black coloration with inkjet marking ensures visibility and identification while providing UV protection.

Benefits in Explosion-Hazardous Areas

Mining operations often involve areas where explosive gases or dust concentrations may be present, requiring electrical equipment that meets strict safety standards. The NTSCGEWOEU-TR cable is designed for use in explosion-hazardous areas, providing peace of mind for operators working in potentially dangerous environments.

The cable's oxygen index of greater than 29 contributes to its fire resistance characteristics, while its behavior in case of fire meets DIN EN/IEC 60332-1-2 standards. These safety features are crucial for maintaining worker safety and preventing the escalation of incidents in mining environments where the consequences of electrical failures can be severe.

Construction and Design Details

Advanced Conductor Technology

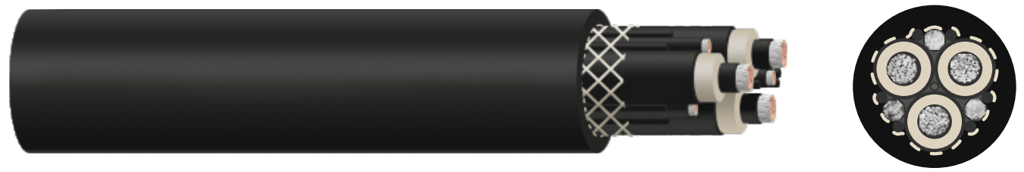

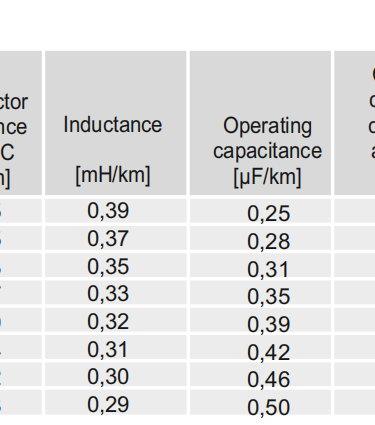

The NTSCGEWOEU-TR cable utilizes tinned copper conductors manufactured to class 5 specifications according to IEC 60228. These finely stranded conductors provide optimal flexibility while maintaining excellent electrical conductivity. The tinning process protects the copper from corrosion, extending cable life in harsh mining environments where moisture and chemical exposure are common.

The protective conductor design incorporates the same high-quality tinned copper construction with an additional semi-conductive layer. The core arrangement features three main cores laid up with a symmetrically split protective-earth conductor cross-section positioned in the interstices, optimizing both electrical performance and mechanical strength.

Innovative Reinforcement System

The reinforcement system represents a critical innovation in mining cable design. The high-tech, tear-resistant reinforcing grid tape provides multiple functions: protection against sheath movement, defense against transverse stress, and resistance to longitudinal forces. This multi-functional approach ensures that the cable maintains its structural integrity even under the most demanding operating conditions.

Heavy-Duty Sheath Characteristics

The outer sheath serves as the primary defense against environmental hazards. Manufactured from heavy-duty rubber compound, the sheath provides exceptional resistance to tears, cuts, and abrasion. The improved formulation offers superior performance compared to standard rubber compounds, ensuring extended service life in demanding mining applications.

Performance and Safety Standards

Comprehensive Standards Compliance

The NTSCGEWOEU-TR cable meets or exceeds multiple international standards, ensuring compatibility and safety across diverse mining operations. Compliance with DIN VDE 0250-813 provides the foundation for medium voltage performance, while adherence to IEC 60811 standards ensures proper testing and evaluation protocols.

The cable's fire behavior characteristics meet EN 60332-1-2 requirements, and CPR 305/2011 certification ensures compliance with European construction product regulations. Additionally, RoHS 2015/863/EU compliance demonstrates environmental responsibility in manufacturing processes.

Superior Short-Circuit Performance

The cable's ability to withstand short-circuit temperatures up to 250°C at the conductor provides substantial safety margins during fault conditions. This performance characteristic, combined with permissible short-circuit current ratings ranging from 3.2 kA to 23.68 kA depending on conductor size, ensures that the cable can handle abnormal electrical conditions without catastrophic failure.

Installation and Maintenance Guidelines

Proper Installation Practices

Successful installation of the NTSCGEWOEU-TR cable requires attention to specific handling procedures. The minimum bending radius, calculated according to DIN VDE 0298-3, must be observed to prevent damage to the cable's internal structure. Proper support systems should be implemented to distribute mechanical loads evenly across the cable length.

De-rating factors, applied according to DIN VDE 0298-4, ensure that the cable operates within safe temperature limits under various installation conditions. These factors account for ambient temperature, cable grouping, and installation method variations that can affect thermal performance.

Maintenance and Inspection Protocols

Regular inspection of trailing cables is essential for maintaining operational safety and preventing unexpected failures. Visual inspections should focus on signs of mechanical damage, such as cuts, abrasions, or deformation of the outer sheath. Electrical testing should be performed periodically to ensure insulation integrity and conductor continuity.

The cable's robust construction minimizes maintenance requirements, but proper care can significantly extend service life. Protection from sharp edges, proper storage when not in use, and prompt repair of minor damage can prevent small issues from developing into major failures.

Comparative Advantages and Return on Investment

Superior Performance vs. Standard Cables

Compared to conventional mining cables, the NTSCGEWOEU-TR offers significant advantages in durability, flexibility, and environmental resistance. The advanced materials and construction techniques result in substantially longer service life, reduced maintenance requirements, and improved reliability under extreme operating conditions.

Economic Benefits Through Reliability

The investment in premium trailing cable technology pays dividends through reduced downtime, lower maintenance costs, and extended replacement intervals. Mining operations that experience cable failures can face costs ranging from tens of thousands to millions of dollars per incident, making the choice of high-quality cables a critical business decision.

Frequently Asked Questions

Q: What makes the NTSCGEWOEU-TR suitable for explosion-hazardous areas? A: The cable features an oxygen index greater than 29, fire behavior compliance with EN 60332-1-2 standards, and specialized construction that meets safety requirements for potentially explosive environments commonly found in mining operations.

Q: How does the cable handle extreme temperature variations? A: The NTSCGEWOEU-TR operates reliably from -50°C to 90°C in fixed installations and -35°C to 80°C in flexible applications, with conductor temperatures up to 90°C and short-circuit tolerance to 250°C.

Q: What is the expected service life compared to standard mining cables? A: While service life depends on specific operating conditions, the advanced materials and construction typically provide 2-3 times longer service life than conventional mining cables, resulting in significant cost savings over time.

Q: Can the cable handle the mechanical stress of continuous trailing operations? A: Yes, the cable is specifically designed for trailing applications with a tensile load capacity of 15N/mm² per conductor and specialized reinforcement systems that protect against transverse and longitudinal stress.

Conclusion

The NTSCGEWOEU-TR flexible power supply cable represents the pinnacle of engineering innovation for open-pit mining operations. Its combination of medium voltage performance, exceptional mechanical strength, environmental resistance, and safety compliance makes it an indispensable component for mining companies seeking to maximize operational efficiency while minimizing risk.

The cable's advanced construction, featuring tinned copper conductors, EPR insulation, tear-resistant reinforcement, and heavy-duty rubber sheath, delivers unmatched performance in the world's most demanding mining environments. Compliance with international standards and comprehensive safety features ensure that operations can proceed with confidence, even in explosion-hazardous areas.

For mining operations seeking to optimize their power infrastructure investment, the NTSCGEWOEU-TR cable offers compelling advantages in terms of reliability, longevity, and total cost of ownership. The substantial reduction in downtime risk and maintenance requirements more than justifies the investment in this premium trailing cable solution.

Contact our technical specialists today to discuss your specific mining power supply requirements and receive detailed quotations for the NTSCGEWOEU-TR cable system. Our engineering team can provide customized solutions tailored to your operational needs, ensuring optimal performance and maximum return on investment for your critical mining infrastructure.
