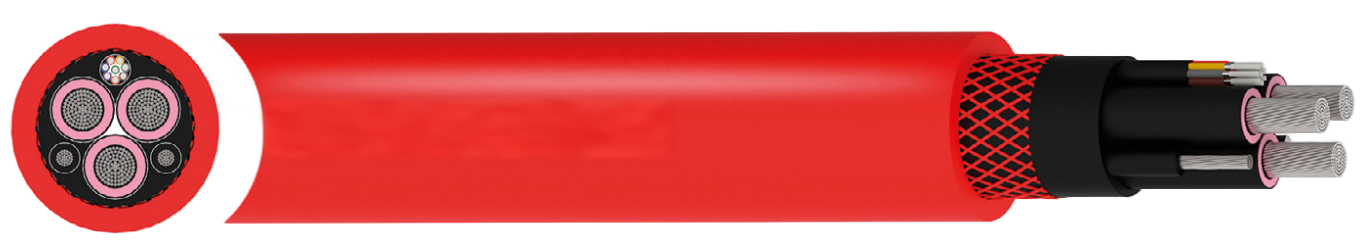

Flexible Reeling Cable R-(N)TSCGEWÖU + FO – Reduced Dimension Design
Heavy-duty power and fibre optic cable for high-speed reels, mining, and extreme mechanical stress applications
$15.00
APPLICATION
Specially designed flexible reeling cable with reduced dimensions for extremely high mechanical stresses occur in applications with monospiral reels and cylindrical reels, very high reeling speed,torsional stress. Also for connection of large material handling machines such as excavators, dumpers, crushers in open-cast mines. For use in wet or dry conditions, in industrial units, in underground and open-cast mining, in explosion-risk areas.
CONSTRUCTION
Conductor
Annealed class 5 flexible stranded tinned or bare copper
Separator
Semi-conductive tape
Conductor Screen
Semi-conductive layer of special rubber
REGULATORY COMPLIANCE
Insulation
Special EPDM rubber
Insulation Screen
Semi-conductive, special strippable layer
Earth Conductor
Class 5 tinned or bare copper with extruded special semi-conductive rubber compound
Inner Sheath
A special synthetic thermosetting compound type 5GM3
Anti-Torsion Braid
Braid of polyamide threads
Outer Sheath
Special synthetic thermosetting compound 5GM5
Sheath Colour
● Red
STANDARDS
DIN VDE 0250-813, IEC 60228, DIN VDE 0207/21, DIN VDE 0298-4, DIN VDE 0298-3
Flame Propagation: PN-EN 60332-1-2, IEC 60332-1-2
Oil Resistant: PN-EN 60811-404, IEC 60811-404
UV Resistant: UL 2556, ISO 4892-2
Ozone Resistant: PN-ISO 1431-1
Tear, Impact and Abrasion Resistant
