Flexible VSD/EMC Cables, 0.6/1kV
Cable
Application
These cables are used for applications that require Electromagnetic Compatibilit (EMC), to minimise any interference or disturbance, propagation and reception of electromagnetic energy with reference to unwanted effects, and suitable for Variable Speed Drive equipment or other application requiring screened cable.
Standard
AS/NZS 5000.1
AS/NZS 3808
AS/NZS 1125
Construction

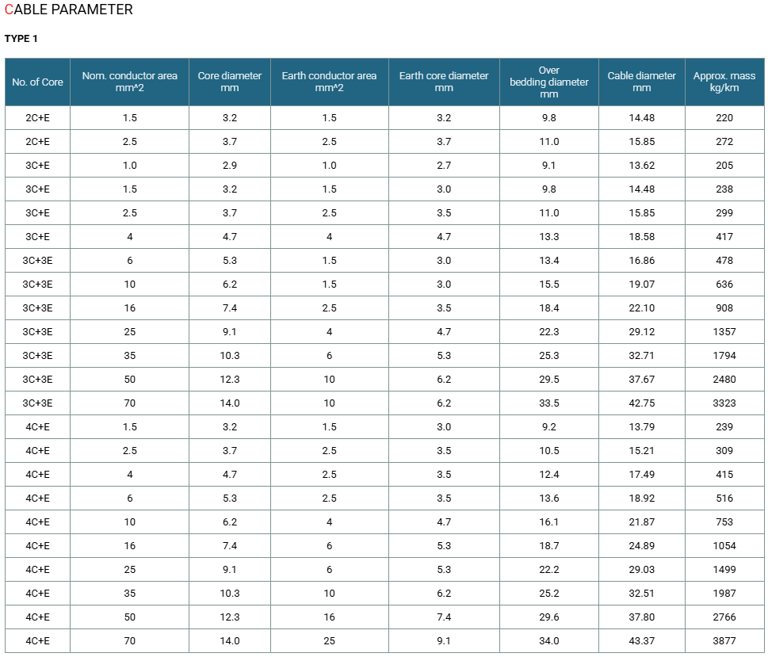

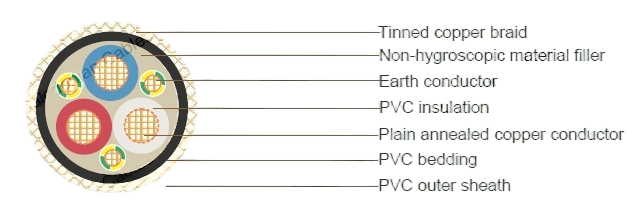

TYPE 1
Conductor | Plain annealed copper, class 5 strands |
Insulation | Flame retardant polyvinyl chloride PVC V75 |
Insulation colour: | 3 cores + E: Red, White, Blue + Green/Yellow |
Filler: | Non-hygroscopic material |
Bedding: | Flame retardant polyvinyl chloride PVC V75 |
Screen: | Tinned annealed copper braid |
Sheath: | Flame retardant polyvinyl chloride PVC V75 |
Sheath colour: | Transparent |

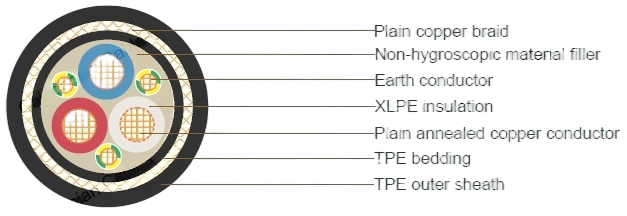

TYPE 2
Conductor | Plain annealed copper, class 5 strands |
Insulation | Cross -linked polyethylene (XLPE) |
Insulation colour: | 3 cores + E: Red, White, Blue + Green/Yellow |
Filler: | Non-hygroscopic material |
Bedding: | Thermoplastic elastomer (TPE) |
Screen: | Plain annealed copper braid |
Sheath: | Thermoplastic elastomer (TPE) |
Sheath colour: | Black |
