FLGÖU Flexible Power & Control Cable for Lifts, Conveyors, and Machinery
Durable solution for indoor and outdoor use in hoisting devices, dockyards, and weatherproofed facilities
$10.00
Structure & Specifications |

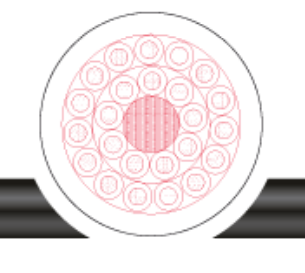

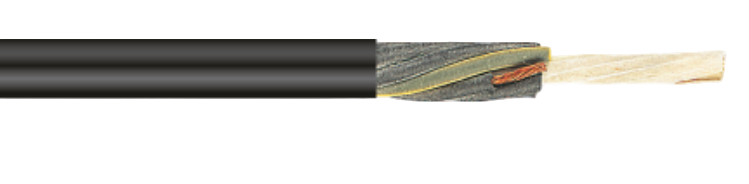

conductor material bare copper strand conductor class acc. to DIN VDE 0295 class 6 resp. IEC 60228 cl. 6 core insulation rubber compound core identification acc. to VDE 0293-308 up to 5 wires coloured, from 6 wi- res black with white numerals with GNYE supporting element textile supporting element overall stranding cores stranded in layers around textile supporting ele- ment outer sheath special rubber-compound sheath colour black, RAL 9005 printing yes rated voltage Uo/U: 300/500 V testing voltage 3 kV current carrying capacity acc. to DIN VDE, see Technical Guideline min. bending radius fixed 12,5 x d min. bending radius moved 12,5 x d; forced guidance 20 x d speed max. 1,6 m / s suspension height max. 80 m operat. temp. fixed min/max -40 °C / +80 °C operat. temp. moved min/max -25 °C / +80 °C temp. at conductor +90 °C burning behavior self-extinguishing and flame retardant acc. to IEC 60332-2-1 resistant to oil acc. to EN 60811-2-1 standard similar to DIN VDE 0250 |
Application |
power and control cable in lift and conveyor facilities, machine-tools and construction machines, hoisting devices, dockyards and especially for teach pads as well as all wea- therproofed machinery and facilities. Suitable for dry, humid and wet rooms also out- door. |
Special Features |
• central supporting element with high tensile strength • free from lacquer damaging substances and silicone (during production) |
Remarks |
• conform to RoHS • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE • We are pleased to produce special versions, other dimensions, core and jacket co- lours on request. • Available accessory you'll find on pages 15.35.XX |
