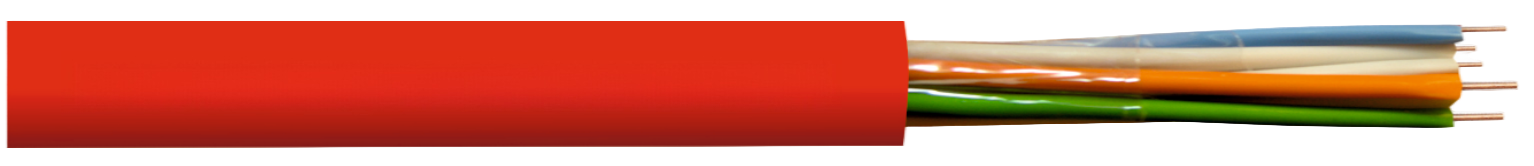

Fire-Resistant, Halogen-Free Telecommunication Cable FE180/PH120/E90
Indoor Use with 180-Min Insulation and 120-Min Circuit Integrity, Low Smoke and Corrosive Gas Emission, Suitable for Emergency and Safety Systems
$15.00
Application:
Fire resistant, halogen-free telecommunication cables designed for emergency lighting installations, alarm- , signalling-, and teletransmission systems, in sound alarm systems as well as in fire warning systems, fire automation and other safety ensuring installations. Under fire conditions those cables ensure proper operation of installations for at least 120 minutes (PH120) and durability of conductors insulation for 180 minutes (FE180). During burning cables do not emit corrosive gases or dense smoke. Cables are suitable for fixed installations inside buildings. FE180/PH120 (E90) cables have been tested in accordance with the requirements of DIN 4102 p.12 and can be installed in E90 cable support systems as their elements (installation on clamps located every 30cm and 60cm).
Technical data:
Thermal parameters:
Temperature range:
Fixed installation: -30°C up to 80°C
Min. instalation temp: -5°C
Electrical parameters:
Operating voltage: 225 V Test voltage:
AC 1500 V
DC 2250 V
Insulation resistance (min.): 500MΩ*km Pair loop resistance at 20°C (max.):
0,8 mm - 75 Ω/km
1,0 mm - 48 Ω/km
1,4 mm - 26,6 Ω/km
1,8 mm - 14,96 Ω/km
2,3 mm - 9,6 Ω/km
2,8 mm - 6,4 Ω/km
Mutual capacitance of pair at 1kHz
(maximum): 120 nF/km Mechanical parameters:
Min. bending radius: 10 x Ø
Design:
Cores: solid copper conductor class 1, acc. to EN 60228
Insulation: mica tape wrapping and halogen-free compound
Core colours: acc. to table „conductor insulation colour” in Technical Data chapter (acc. to PN-T-90321:1992)
Cores arrangement: pairs twisted together parallelly
Outer sheath: halogen-free polymer compound; colour: red
