FR-H 110 CU/MGT/LSZH (SINGLE CORE)

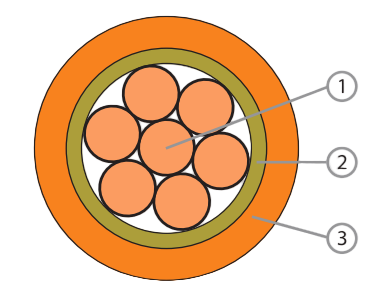

CONSTRUCTION                                                                                                      REFERENCE STANDARDS

Conductor:                                         Plain  Annealed  Copper,Class  2

Stranded  Circular  or  Compacted

Design   Specification:

BS EN50525-3-41

Conductor:

IEC60228,BS  EN60228

Fire  Barrier:                                      Mica   Tape(MGT)

Fire  Resistance:

BS6387(C,W,Z),SS299(C),IEC60331

Insulation:                                          Cross-linked     Polyolefin(LSZH)Low

Smoke  Zero   Halogen  Compound                Flame   Retardancy:

IEC60332-3-22,BS   EN60332-3-22

Insulation    Colour:                            Orange  or  Others

ELECTRICAL CHARACTERISTICS

Operating   Voltage:                         450/750V(0.6/1kV*)

Low  Smoke  Zero  Halogen:

INSTALLATION REFERENCE

IEC61034-2,BS  EN61034-2

IEC60754-1,IEC60754-2

BS EN50267-2-1,BS EN50267-2-2

Operating    Temperature:                 -15℃ to 90℃                       Min.Bending       Radius(mm):

8xcable       overalldiameter

Final  Short  Circuit  Temperature:    250℃                            Max.Pulling       Tension(N/mm²):

Test  Voltage:                                    3.5kV  for  5  minutes

50
