FR-N1 X1G1-AR Cable
The FR-N1 X1G1-AR low voltage aluminium fire retardant power cable is recommended for use in public and industrial settings whenever reduced fumes, toxic and corrosive gases emissions are required in case of fire.
APPLICATION The FR-N1 X1G1-AR low voltage aluminium fire retardant power cable is recommended for use in public and industrial settings whenever reduced fumes, toxic and corrosive gases emissions are required in case of fire. May be used in industrial settings and in building risers. Can be used for staticapplications in the open air, in pipes, or in cable trays and trenches. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Temperature Rating Minimum laying temperature: -20ºC Operating temperature: -25ºC to +65ºC Maximum Conductor temperature: +90ºC Short Circuit Temperature 250°C Minimum Bending Radius Single core: 15 x overall diameter Multi-core: 12 x overall diameter |

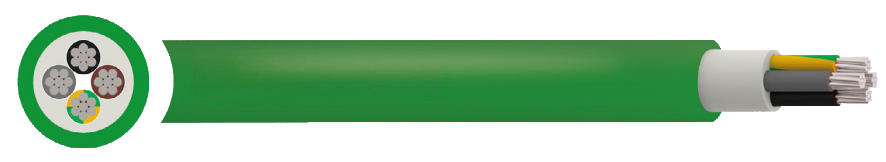

CONSTRUCTION
Conductor
RM: Class 2 round stranded aluminium
Insulation
XLPE (Cross-Linked Polyethylene)
Inner Sheath
Halogen free tape or halogen free polymer compound
Outer Sheath
Halogen-free polymer compound
Core Identification
2 core: Blue Brown
3 core: ● Black ● Brown Grey
4 core: ● Black ● Brown ● Grey ● Blue
Outer Sheath Colour
● Green
