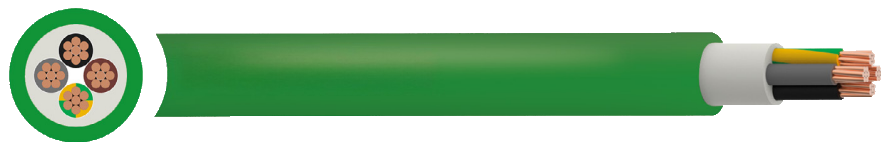

FR-N1 X1G1 Cable
The FR-N1 X1G1 is a low voltage fire resistant cable suitable for hotels, hospitals, underground railways, airports etc.
APPLICATION The FR-N1 X1G1 is a low voltage fire resistant cable suitable for hotels, hospitals, underground railways, airports etc. to protect people and technical building equipment in the event of a fire if circuit integrity is not required. Not suitable for installations underground or in water. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Temperature Rating Minimum laying temperature: -15ºC Operating temperature: -20ºC to +60ºC Maximum Conductor temperature: +90ºC Short Circuit Temperature 250°C Minimum Bending Radius Single core: 15 x overall diameter Multi-core: 12 x overall diameter |
CONSTRUCTION
Conductor
RE: Class 1 round solid copper
RM: Class 2 round stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Inner Sheath
Halogen free tape or halogen free polymer compound
Outer Sheath
Halogen-free flame retardant
Core Identification
2 core: Brown Blue
3 core: ● Brown ● Black ● Grey
4 core: Brown ● Black ● Grey ● Blue
5 core: ● Brown ● Black ● Grey ● Blue ● Black
Outer Sheath Colour
● Green
