FR-XAH CU/MGT/XLPE/LSZH/AWA/LSZH (SINGLE CORE)

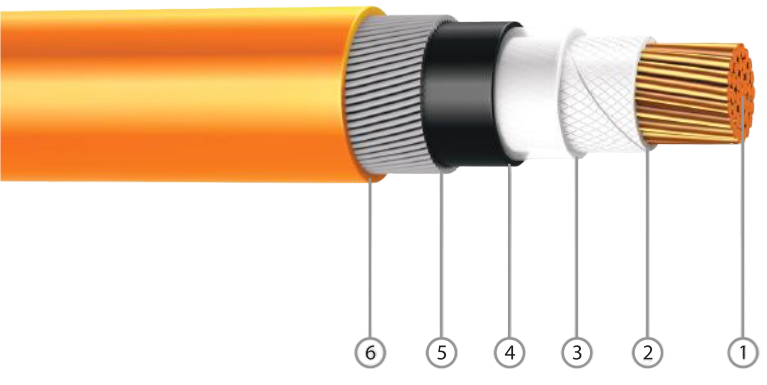

CONSTRUCTION

Conductor:

Plain Annealed  Copper,Class  2    Stranded  Circular  or  Compacted

ELECTRICAL CHARACTERISTICS

Operating   Voltage:                          0.6/1kV

Operating    Temperature:                  -15℃ to 90℃

Fire  Barrier:

Mica  Tape(MGT)

Final  Short  Circuit  Temperature:

250℃

Insulation:

Insulation    Colour:

Cross-linked    Polyethylene(XLPE)

Compound                                                          Test  Voltage:                                     3.5kV for 5  minutes

Natural

Bedding:

Low Smoke Zero Halogen (LSZH) Compound

REFERENCE STANDARDS

Design   Specification:

Conductor:

IEC60502-1

IEC60228,BS  EN60228

Bedding    Colour:

Black

Fire  Resistance:                                BS6387(C,W,Z),SS299(C,W,Z),

Armour:

Aluminium   Wire   Armoured(AWA)                                                                             IEC60331

Outer   Sheath:

Low  Smoke  Zero  Halogen(LSZH) Compound   with   Anti-Termite

Charateristic and  UV  Resistant

Flame   Retardancy:

Low  Smoke  Zero  Halogen:

IEC60332-3-22,BS   EN60332-3-22 IEC61034-2,BS  EN61034-2

Outer  Sheath  Colour:

IEC60754-1,IEC60754-2

BS EN50267-2-1,BS EN50267-2-2

Orange  or  Others

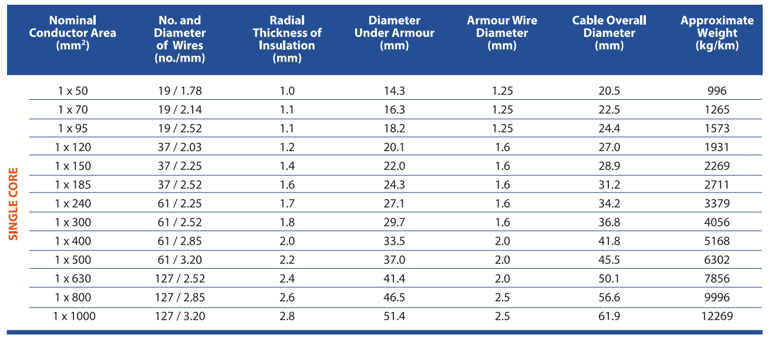

INSTALLATION REFERENCE

Min.Bending      Radius(mm):            10×cable       overalldiameter

Max.Pulling      Tension(N/mm²):      50
