FR-XH CU/MGT/XLPE/LSZH

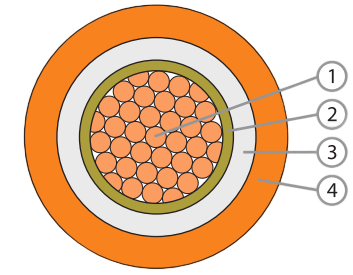

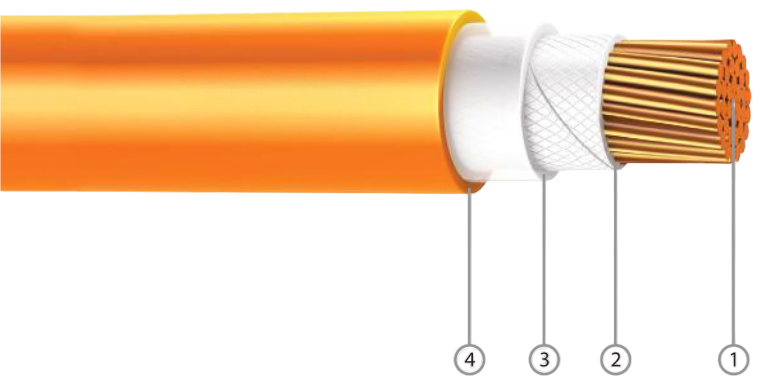

CONSTRUCTION

Conductor:                               Plain Annealed  Copper,Class  2

Stranded  Circular  or  Compacted

Fire  Barrier:                                      Mica   Tape(MGT)

Insulation:                                 Cross-linked     Polyethylene(XLPE)

Compound

Insulation    Colour:                            Natural

Outer   Sheath:                                  Low  Smoke Zero  Halogen  (LSZH)

Compound   with   Anti-Termite  Charateristic and  UV  Resistant

Outer  Sheath  Colour:                      Orange  or  Others

ELECTRICAL CHARACTERISTICS

Operaing Voltage:                      0.6/1kV

Operating    Temperature:                  -15℃ to 90℃

Final  Short  Circuit  Temperature:    250℃

INSTALLATION REFERENCE

Min.Bending      Radius(mm):            8xcable overalldiameter

Max.Pulling      Tension(N/mm²):      50
