FR-XH CU/MGT/XLPE/LSZH (2CORES-5 CORES)

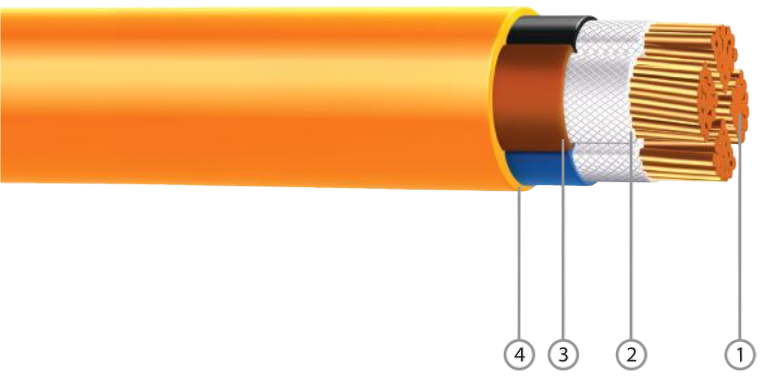

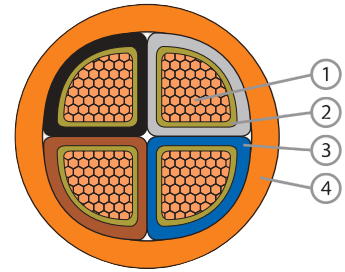

CONSTRUCTION

Conductor:

Plain Annealed  Copper,Class 2  Stranded Circular,Compacted   or   Sectored

Fire  Barrier:

Mica  Tape(MGT)

Insulation:

Cross-linked    Polyethylene(XLPE) Compound

ELECTRICAL CHARACTERISTICS

Operating   Voltage:

Operating    Temperature:

0.6/1kV

-15℃ to 90℃

Final  Short  Circuit

250℃

Insulation:

Cross-linked    Polyethylene(XLPE) Compound

Insulation    Colour:

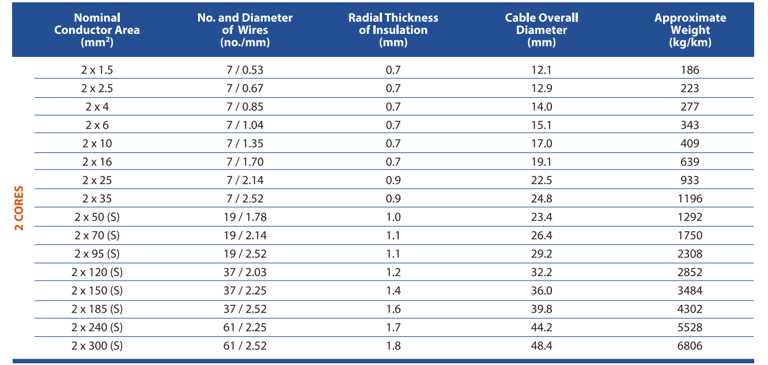

2 Cores:

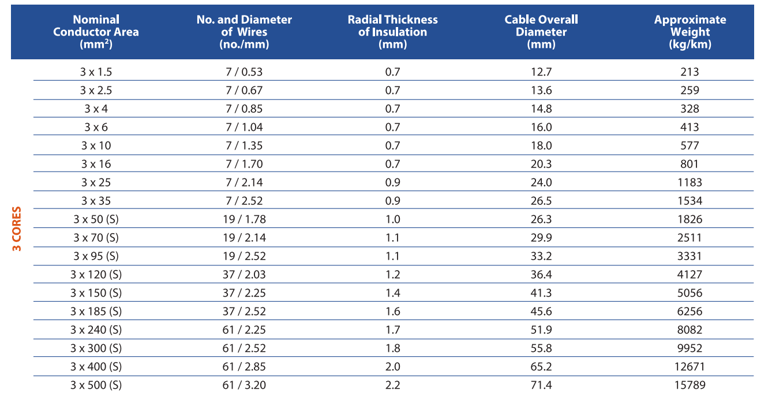

Brown,Blue  or   Red,Black 3 Cores:

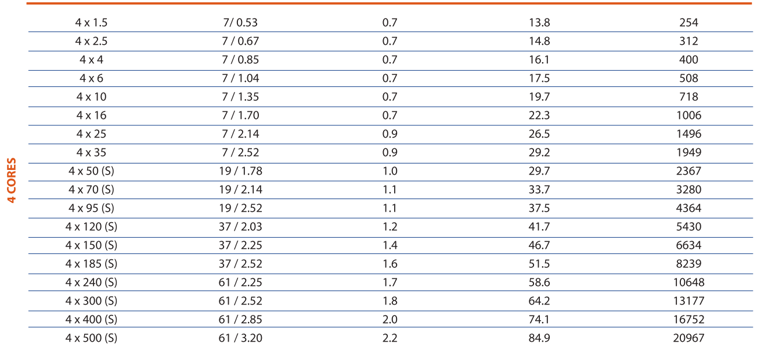

Brown,Black,Grey   or   Red,Yellow,Blue 4 Cores:

Brown,Black,GreyBlue    or    Red,Yellow, Blue,Black

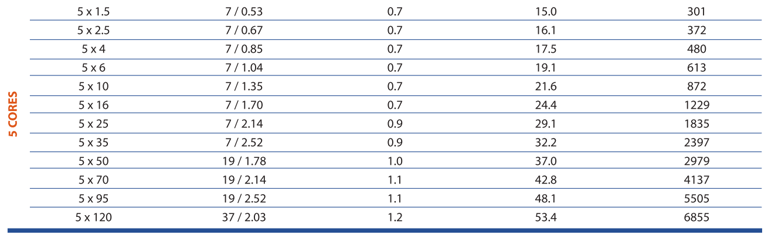

5 Cores:

Brown,Black,Grey,Blue,Green/Yellow     or Red,Yellow,Blue,Black,Green/Yellow      or

White  with  Black  numbering  or  Others

Assembly:

Cores  cabled  together  with  filler  and covered  with   Polyester(PET)Tape

Outer   Sheath:

Low Smoke Zero Halogen (LSZH) Compound   with   Anti-Termite

Outer  Sheath  Colour:

Charateristic and  UV  Resistant Orange  or  Others

INSTALLATION REFERENCE

Min.Bending      Radius(mm):

Max.Pulling      Tension(N/mm²):

8xcable overalldiameter

50
