FR-XL CU/MGT/XLPE/LSZH (MULTI-CORES)

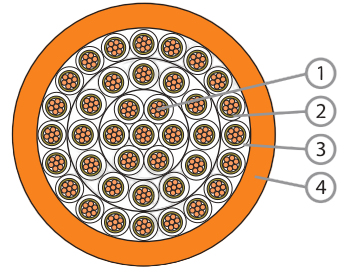

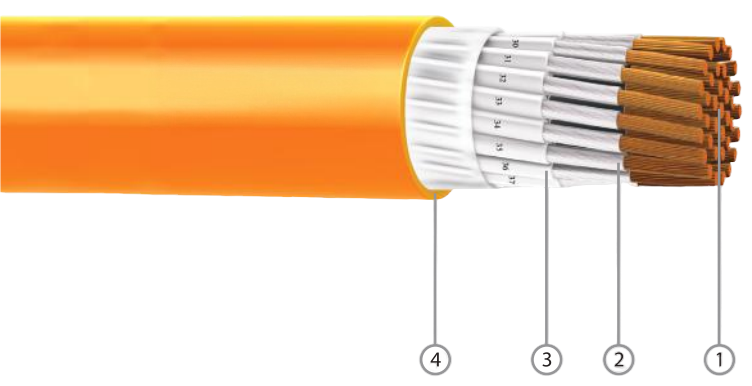

CONSTRUCTION

Conductor:Plain  Annealed  CopperClass  2  Stranded Circular  or  Compacted

Fire  Barrier:Mica  Tape(MGT)

Insulation:Cross-linked  Polyethylene(XLPE) Compound

Insulation Colour:

2 Cores:

Brown,Blue  or  Red,Black

3 Cores:

Brown,Black,Grey    or    Red,Yellow,Blue

4 Cores:

Brown,Black,Grey,Blue    or    Red,Yellow, Blue,Black

5 Cores:

Brown,Black,Grey,Blue,Green/Yellow     or Red,Yellow,Blue   Black   Green/Yellow

6 Cores and above:

White  with  Black  numberings  or  Others

Assembly:Cores  cabled  together  and  covered  with Polyester(PET)Tape

Outer   Sheath:Low Smoke Zero Halogen (LSZH) Compound   with   Anti-Termite Charateristic and  UV  Resistant

Outer  Sheath  Colour:Orange  or  Others

ELECTRICAL CHARACTERISTICS

Operating   Voltage:                          300/500V

Operating    Temperature:                 -15℃ to 90℃

Final  Short  Circuit  Temperature:    250℃

INSTALLATION REFERENCE

Min.Bending      Radius(mm):            8x   cable    overalldiameter

Max.Pulling      Tension(N/mm²):     50
