FR-XOL CU/MGT/XLPE/OS/LSZH (SINGLE PAIR)

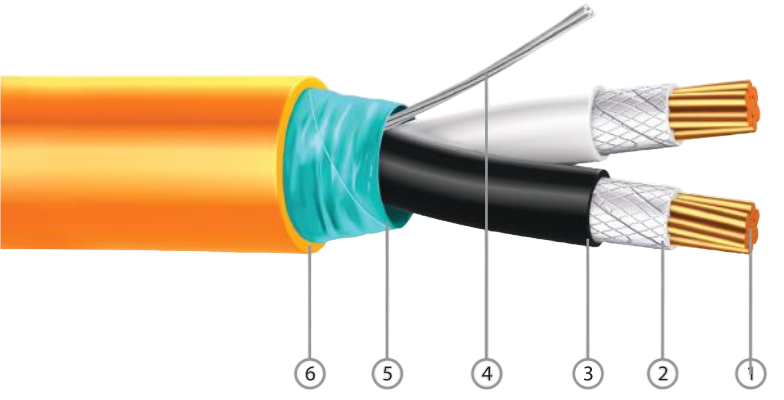

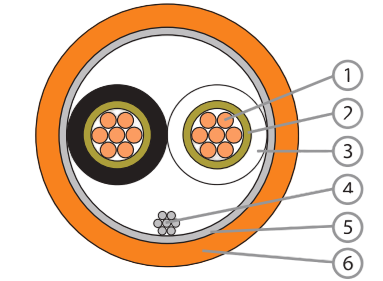

CONSTRUCTION

Conductor:

Plain Annealed  Copper,Class 2  Stranded Circular

Fire  Barrier:

Mica  Tape(MGT)

Insulation:

Cross-linked    Polyethylene(XLPE) Compound

Insulation    Colour:

Black,White  or  Others

Lay  Up:

Wrap  Film:

Overall  Screen:

Pair-Cores  twisted  to  pair Polyester  Binder Tape

Aluminium/Polyester   Tape,with   a  Tinned  Copper  Drain  Wire  0.5mm² (7/0.3mm)(OS)

Outer  Sheath:

Low Smoke Zero Halogen (LSZH) Compound   with   Anti-Termite

Characteristic and  UV  Resistant

Outer  Sheath  Colour:

Orange  or  Others
