FR-XSH CU/MGT/XLPE/LSZH/SWA/LSZH ( 2CORES-5 CORES)

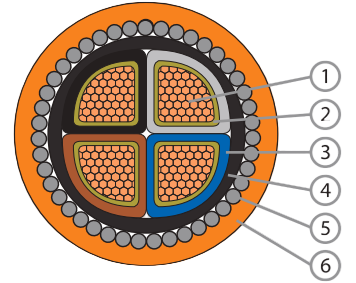

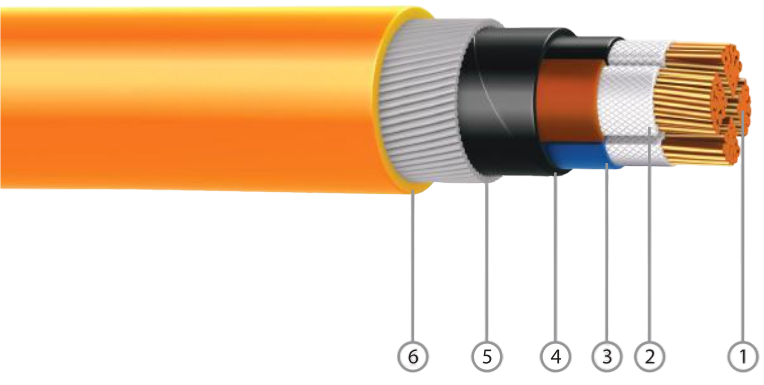

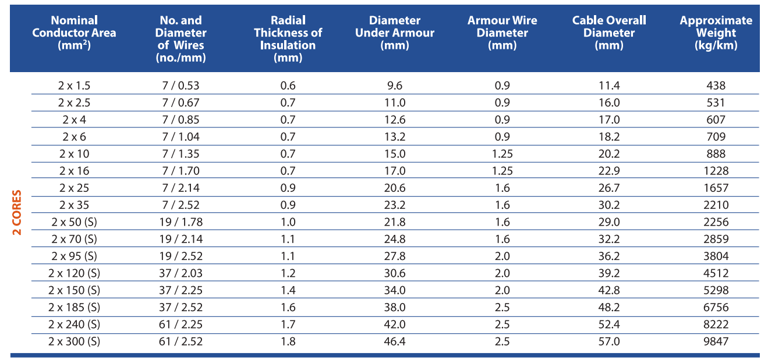

CONSTRUCTION

Conductor:

Plain Annealed Copper,Class 2 Stranded

ELECTRICAL CHARACTERISTICS

Operating   Voltage:                         0.6/1kV

Fire  Barrier:

Circular,Compacted   or   Sectored

Operating    Temperature:                -15℃ to 90℃

Mica  Tape(MGT)

Insulation:

Insulation    Colour:

Cross-inked     Polyethylene(XLPE) Compound

2 Cores:

Brown,Blue  or  Red,Black

3 Cores:

Brown,Black,Grey   or   Red,Yellow,Blue

4 Cores:

Brown,Black,Grey,Blue   or   Red,Yellow, Blue,Black

5 Cores:

Brown,Black,Grey,Blue,Green/Yellow           or Red,Yellow,Blue,Black,Green/Yellow           or

White   with   Black   numbering   or   Others

Final    Short    Circuit    Temperature:250℃

Test  Voltage:                                   3.5kV for 5  minutes

REFERENCE STANDARDS

Design   Specification:                     BS7846

Conductor:                                 IEC60228,BS  EN60228

Fire Resistance:                               BS6387(C,W,Z),SS299(C,W,Z),

IEC60331

Flame   Retardancy:                          IEC60332-3-22,BS   EN60332-3-22

Assembly:

Bedding:

Cores  cabled  together  with  filler  and covered  with   Polyester(PET)Tape

Low Smoke Zero Halogen (LSZH) Compound

Low  Smoke  Zero  Halogen:             IEC61034-2,BS  EN61034-2

IEC60754-1,IEC60754-2

BS EN50267-2-1,BS EN50267-2-2

INSTALLATION REFERENCE

Bedding   Colour:

Armour:

Black                                                                           Min.Bending       Radius(mm):           10x   cable  overall  diameter

Galvanized Steel Wire Armoured (SWA)                 Max.Pulling      Tension(N/mm²):      70

Outer   Sheath:

Low Smoke Zero Halogen (LSZH) Compound   with   Anti-Termite

Charateristic and  UV  Resistant

Outer  Sheath  Colour:

Orange  or  Others
