FR-XSH CU/MGT/XLPE/LSZH/SWA/LSZH (MULTI- CORES)

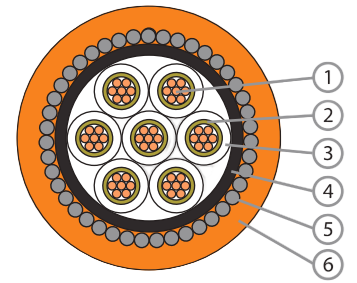

CONSTRUCTION

Conductor:

Plain  Annealed  CopperClass  2  Stranded Circular  or  Compacted

ELECTRICAL CHARACTERISTICS

Operating   Voltage:                         0.6/1kV

Operating    Temperature:                -15℃ to 90℃

Fire  Barrier:

Mica  Tape(MGT)

Final  Short  Circuit  Temperature:

250℃

Insulation:

Insulation    Colour:

Cross-linked    Polyethylene(XLPE) Compound

White  with  Black  numbering  or  Others

Test Voltage:

REFERENCE STANDARDS

3.5kV for 5 minutes

Assembly:

Cores  cabled  together  and  covered  with Polyester(PET)Tape

Design   Specification:

Conductor:

BS7846

IEC60228,BS  EN60228

Bedding:

Low Smoke Zero Halogen (LSZH) Compound

Fire  Resistance:

BS6387(C,W,Z),SS299(C,W,Z), IEC60331

Bedding    Colour:

Black

Flame   Retardancy:

IEC60332-3-22,BS   EN60332-3-22

Armour:

Galvanized Steel Wire Armoured (SWA)

Outer   Sheath:

Outer  Sheath  Colour:

Low Smoke Zero Halogen (LSZH) Compound   with   Anti-Termite

Charateristic and  UV  Resistant

Orange  or  Others

Low  Smoke  Zero  Halogen:

INSTALLATION REFERENCE

Min.Bending      Radius(mm):

Max.Pulling      Tension(N/mm²):

IEC61034-2,BS  EN61034-2

IEC60754-1,IEC60754-2

BS EN50267-2-1,BS EN50267-2-2

10xcable       overalldiameter 70
