FR2OH1R/FR2OH2R

Application and Description

These cables are suitable for connections and movable equipments where performances and entertainments take place. Can be laid inside, even in dry or wet environments or outside but only for a temperatureorary use. The main feature of these cables is its protection against electromagnetic interference thanks to the copper braid. Can be lay under plaster or directly buried, even if protected, is not allowed.

Standard and Approval

CEI 20-11

CEI 20-22 II

CEI 20-29

CEI 20-34

CEI 20-35

CEI 20-37 pt.2

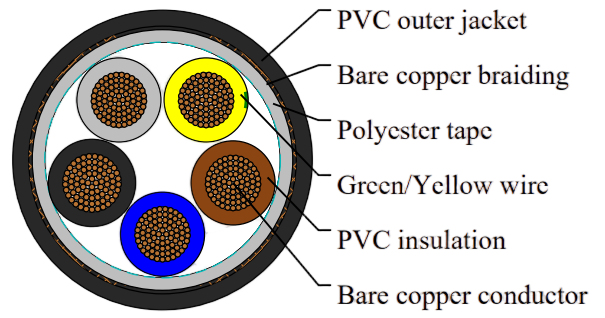

Cable Construction

Flexible bare copper strands

Strands to CEI 20-29 Class-5

PVC Insulation compound type R2 according to CEI 20-11

Color code according to DIN 47100 (up to 0.75 mm² ), or Unel 0722 (from 1.0 mm²)

Polyester tape

Bare copper tape(for FR2OH1R)

Bare copper wires braiding with coverage 75%±5%(for FR2OH2R)

PVC outer sheath compound type TM2 / Rz according to CEI 20-11

Technical Characteristics
