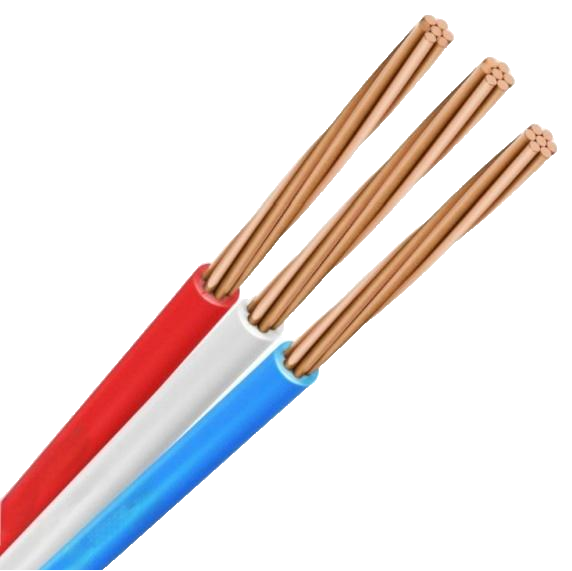

FREE HALOGEN CABLES HFFR-LS Cu 600V 90°C
Our Free-Halogen Cablesdo not spread fire, have low smoke emission, do not emit toxic gases, have a maximum operating temperature of 90°C and more Slidable in sizes from 14 AWG to 10 AWG.
Application
Cables for low voltage electrical energy distribution, installations in buildings, inside premises, control panels and electronic circuits. Suitable for places with a high concentration of people, where free-halogen conductors and low smoke emission are required, which in the event of a fire will not generate toxic or corrosive gases that may affect the health of people and the condition of equipment and circuits electronics. The cables can be used for installations mentioned in NTC 2050 Article 310.
HFFR-LS cables have characteristics that make them SUITABLE FOR MEDICAL CARE FACILITIES where invasive procedures are carried out on people, such as surgery rooms, intensive or special care units, etc., since their insulation has very low leakage currents, complying with the provisions of RETIE numeral 28.3.2, literal h.
Suitable for installation in cable trays according to RETIE article 20.3, literal J, from 12 AWG gauge and larger.
For sizes from 14 AWG to 10 AWG, now more sliding, generating benefits such as:
• Easy to install, even in conduits with multiple bends.
• Reduces friction.
• Less pulling tension effort.
• Savings in installation time.
• Does not require the use of lubricants.

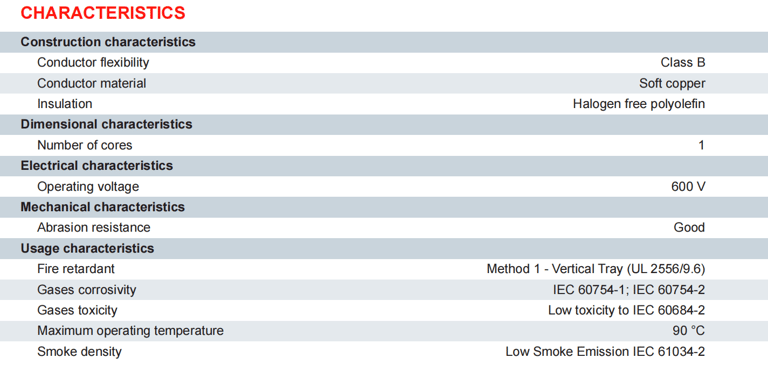

CONSTRUCTION
Conductor
Soft copper conductor.
Insulation
Free halogen, flame retardant and low smoke emission opaque, dense, toxic and corrosive thermoplastic compound.
Operating Temperature
90°C, obtaining greater current capacity compared to a 75°C cable, more efficient electrical design.
Operating Voltage
600 V
