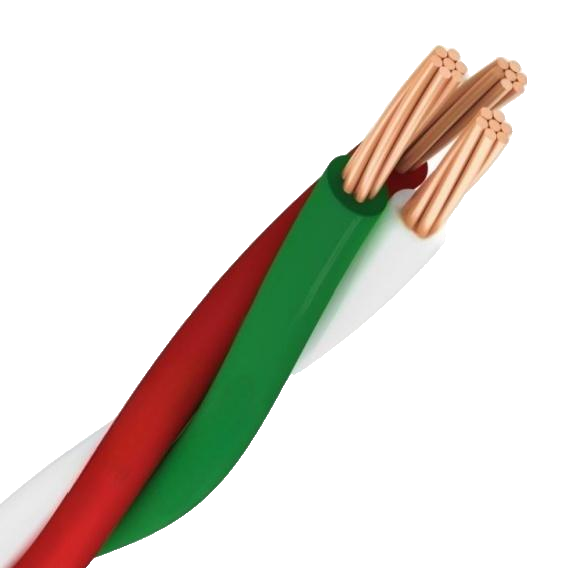

FREE HALOGEN TRIPLEX CABLE HFFR- LS Cu 600V 90°C
Our Free-Halogen Cablesdo not spread fire, have low smoke emission, do not emit toxic gases, have a maximum operating temperature of 90°C.
Application
Cables for low voltage electrical energy distribution, installations in buildings, inside premises, control panels and electronic circuits. Suitable for places with a high concentration of people, where free-halogen conductors and low smoke emission are required, which in the event of a fire will not generate toxic or corrosive gases that may affect the health of people and the condition of equipment and circuits electronics.
Construction
Conductor
Soft copper conductor.
Insulation
Free halogen, flame retardant and low smoke emission opaque, dense, toxic and corrosive thermoplastic compound. Insutated conductors and twisted together.
Operating Temperature
90°C, obtaining greater current capacity compared to a 75°C cable, more efficient electrical design.
Operating Voltage
600 V
Identification

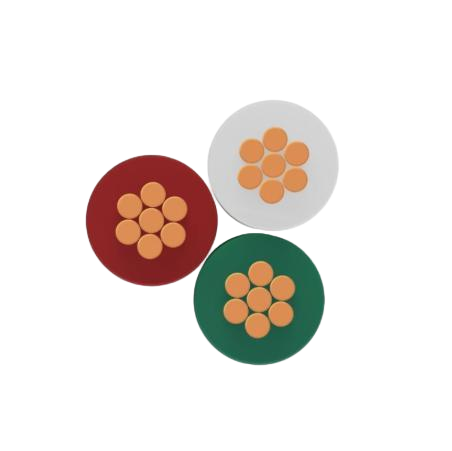

- Three conductors: White, Blue and Green.
- Three conductors: White, Black and Green.
- Three conductors: White, Red and Green.
