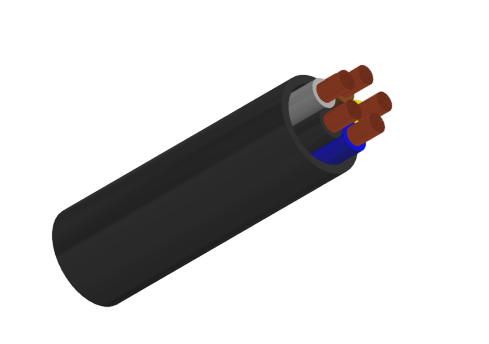

FROR - 300/500V and 450/750V

Application and Description

These flexible cables insulated with Standard and Approval-quality PVC plus a heavyweight PVC sheath, they are suitable for connections and movable equipment, even in places of public show and entertainment. Can be installed inside, in dry or humid environments (AD2), and for temporary use outside and not permissible under the laying plaster or underground, even if protected.

Standard and Approval

CEI 20-20/1/2

CEI 20-22 II

CEI 20-34

CEI 20-35

CEI 20-37

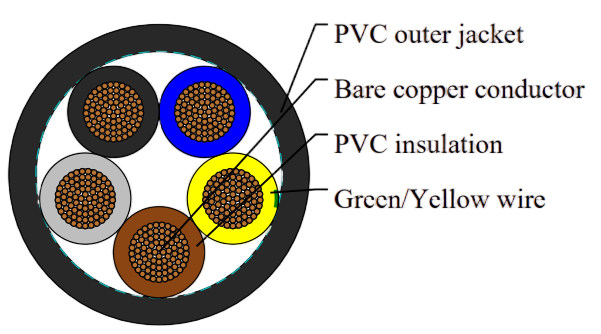

Cable Construction

Fine bare copper strands

Strands to IEC 60228 class 5

PVC core insulation TI2 to CEI 20-11

Color codes to Unel 00722

Green-yellow grounding, 3 conductors and above

PVC outer jacket TM 2 - Black (RAL 9005), Gray(RAL7001/7035)

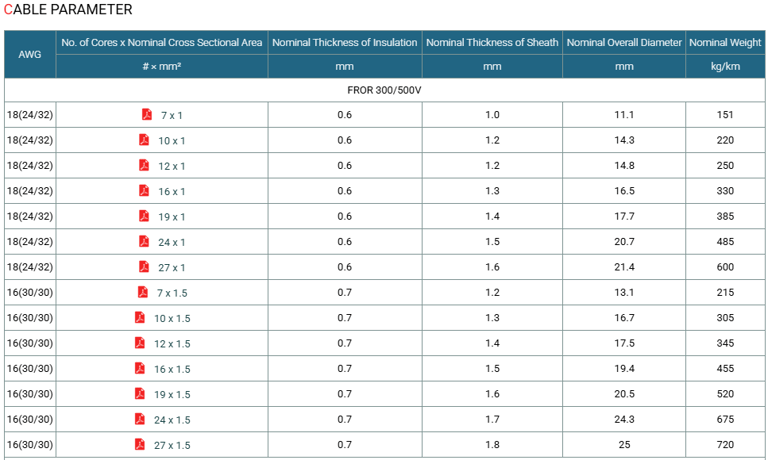

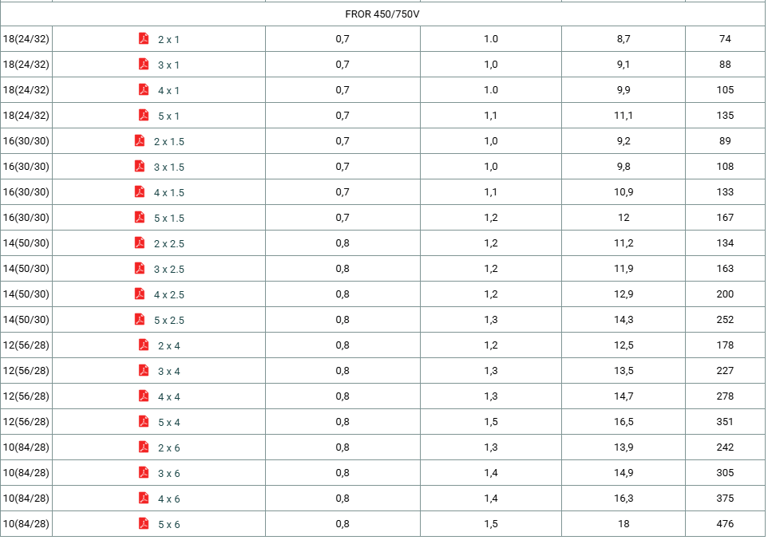

Technical Characteristics
