FRORAR

Application and Description

These cables are for energy transport and signal transmission both in internal and external environments, wet as well. For fixed lay in free air, in pipe or channel, on walling and metallic frames, or suspended. The use of armoured cables is recommended whenever conditions are such that mechanical shocks might occur, the main feature is protection against strikes and rodents. Also appropriate for direct or indirect ground lay.

Standard and Approval

CEI 20-11

CEI 20-34

IEC 60502-1

CEI 20-22 II

CEI 20-34

CEI 20-35

CEI 20-37

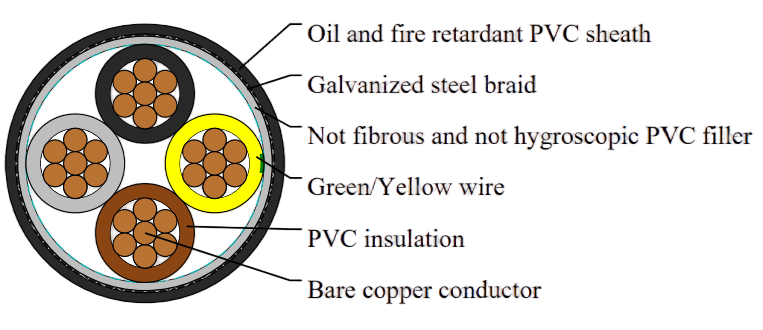

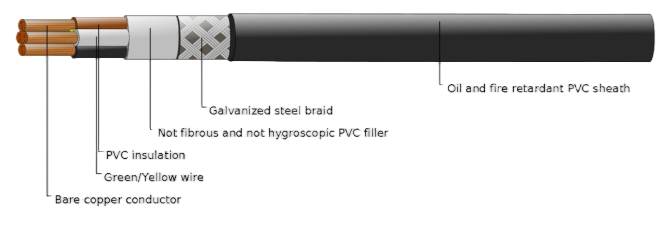

Cable Construction

Flexible bare copper strands

Strands to IEC 60228 Class-5

PVC insulation R2 type

Colour coded to Unel 00722

Not fibrous and not hygroscopic fire retardant PVC filler

Galvanized steel braid with minimum coverage 85%

Oil and fire retardant transparent PVC TM2 to CEI 20-11 outer jacket

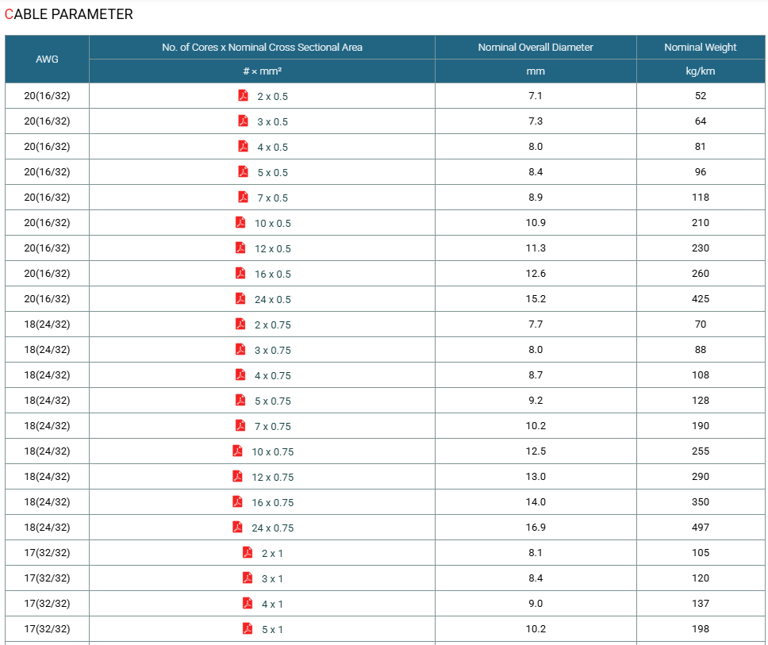

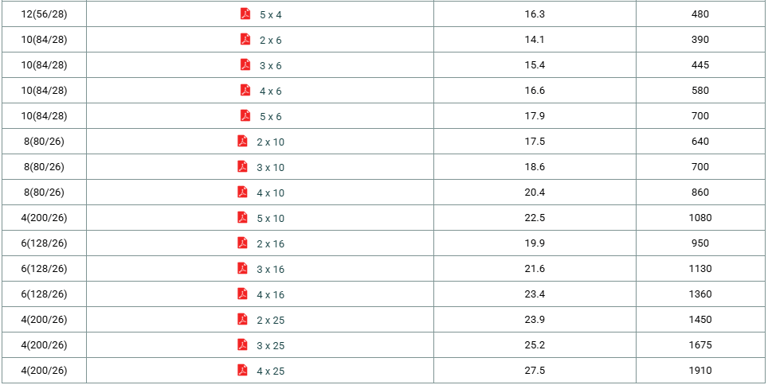

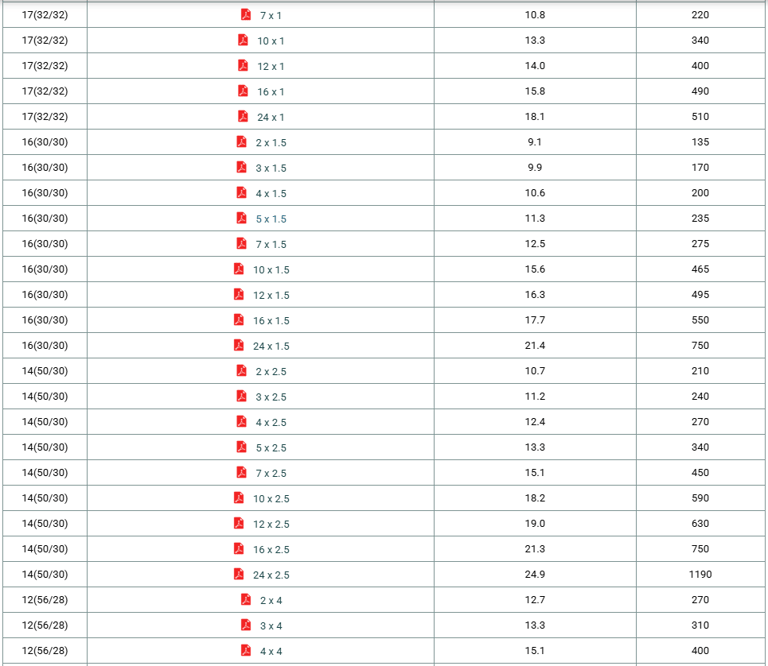

Technical Characteristics
