FRT-H CU/LSZH (SINGLE CORE) Cross-Linked Polyolefin LSZH Insulated,Non-Sheathed Cable,450/750V(0.6/1kV)

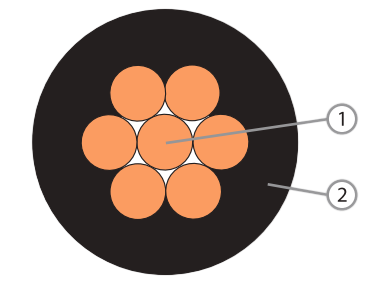

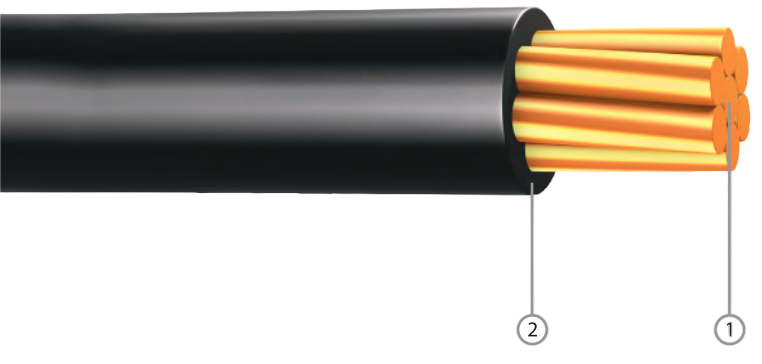

CONSTRUCTION

Conductor:                                         Plain  Annealed  Copper,Class  2

Stranded  Circular  or  Compacted

Insulation:                                           Cross-linked    Polyolefin    (LSZH)

Low   Smoke   Zero   Halogen

Compound

Insulation    Colour:                            Black,Green/Yellow,Red,Yellow,

Blue,White,Brown,Grey   or   Others

ELECTRICAL CHARACTERISTICS

Operaing    Voltage:                         450/750V(0.6/1kV*)

Operating    Temperature:                  -15℃ to 90℃

Final  Short  Circuit  Temperature:    250℃

INSTALLATION REFERENCE

Min.Bending      Radius(mm):

6×cable   overall   diameter

Max.Pulling      Tension(N/mm²):

50
