FRT-XAH CU/XLPE/LSZH/AWA/LSZH (SINGLE CORE) XLPE Insulated,LSZH Bedded,Aluminium Wire Armoured,LSZH Sheathed Cable, 0.6/1kV,BS6724

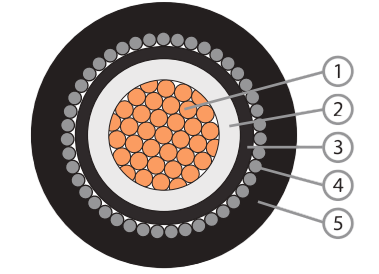

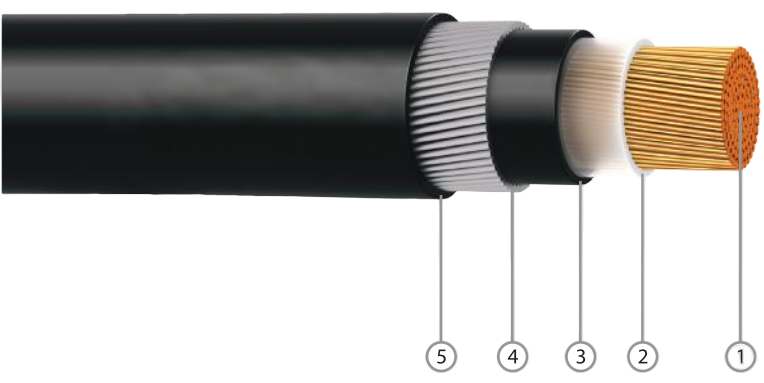

CONSTRUCTION

Conductor:

ELECTRICAL CHARACTERISTICS

Plain Annealed  Copper,Class  2                    Operating   Voltage:                           0.6/1kV

Insulation:

Stranded  Circular  or  Compacted

Cross-linked    Polyethylene(XLPE) Compound

Operating    Temperature:

Final Short  Circuit  Temperature:

-15℃ to 90℃

250℃

Insulation    Colour:

Bedding:

Natural

Low  Smoke  Zero  Halogen(LSZH) Compound

Bedding    Colour:

Armour:

Black

Aluminium

Wire   Armoured(AWA)

Outer   Sheath:

Low Smoke Zero Halogen (LSZH) Compound   with   Anti-Termite

Charateristic and  UV  Resistant

Outer  Sheath  Colour:

Black

INSTALLATION REFERENCE

Min.Bending      Radius(mm):            8xcable       overalldiameter

Max.Pulling      Tension(N/mm²):      50
