FRT-XCAH CU/XLPE/LSZH/CT/LSZH/AWA/LSZH (SINGLE CORE)

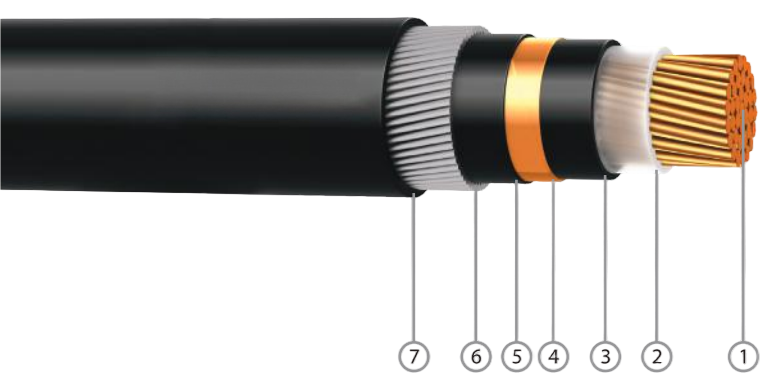

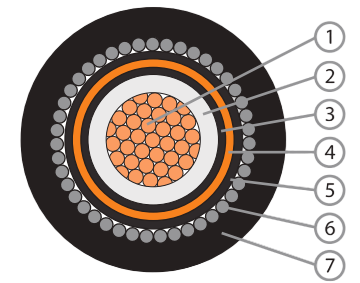

CONSTRUCTION

Conductor:  Plain Annealed Copper,Class 2 StrandedCircular  or  Compacted

Insulation: Cross-linked Polyethylene(XLPE)

Compound Insulation Colour: Natural

Bedding:Low  Smoke Zero  Halogen  (LSZH) Compound

Bedding   Colour: Black

Screen:Copper  Tape

Separation     Sheath: Low    Smoke   Zero    Halogen(LSZH) Compound Separation

Sheath    Colour:Black

Armour: Aluminium  Wire  Armoured  (AWA)

Outer  Sheath: Low Smoke Zero Halogen (LSZH) Compound   with   Anti-Termite  Charateristic and  UV  Resistant

ELECTRICAL CHARACTERISTICS

Operating Voltage: 0.6/1kV

Operating Temperature:  -15℃ to  90℃

Final Short Circuit Temperature:  250℃

INSTALLATION REFERENCE

Min.Bending Radius(mm): 8xcable   overall   diameter

Max.Pulling Tension(N/mm²): 50

Outer  Sheath  Colour: Black
