FRT-XCH CU/XLPE/LSZH/CT/LSZH (3 CORES+3 EARTH)

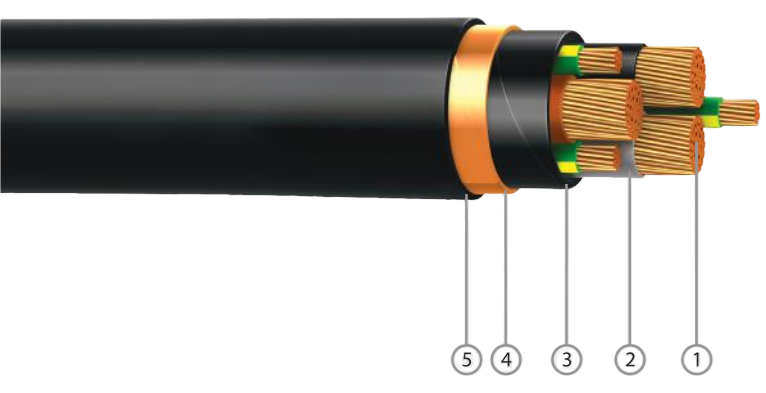

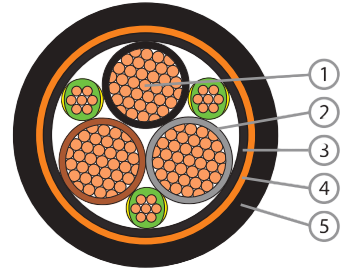

CONSTRUCTION

ELECTRICAL    CHARACTERISTICS

Conductor:

Plain  Annealed  CopperClass  2  Stranded Circular  or  Compacted

Operating  Operating

Voltage:

Temperature:

0.6/1kV

-15℃ to 90℃

Insulation:

Cross-linked        Polyethylene(XLPE)

Compound

Final  Short  Circuit  Temperature:    250℃

Insulation    Colour:

Brown,Black,Grey,Green/Yellow(x3)or Red,Yellow,Blue,Green/Yellow(x3)or   Others

Assembly:

Cores  cabled  together  with  filler  and covered  with   Polyester(PET)Tape
