FRT-XCH CU/XLPE/LSZH/CT/LSZH (4 CORES)

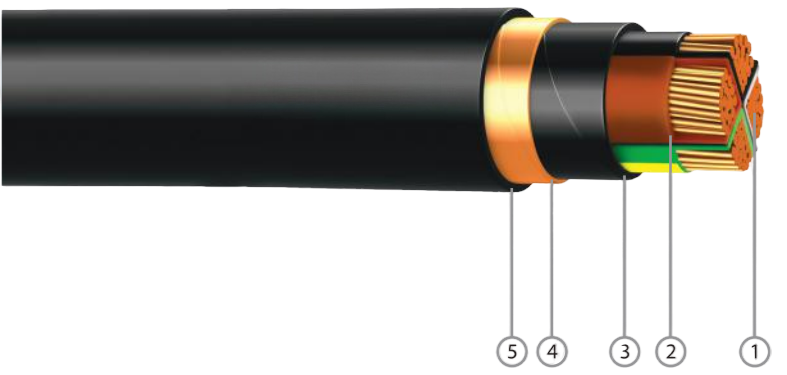

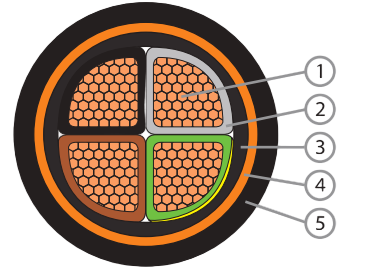

CONSTRUCTION

Conductor:

Plain Annealed Copper,Class 2 Stranded Circular,Compacted   or   Sectored

Insulation:

Cross-linked    Polyethylene(XLPE) Compound

Insulation    Colour:

Assembly:

Brown,Black,Grey,Green/Yellow      or Others

Cores  cabled  together  with  filler  and covered   with   Polyester(PET)Tape

Bedding:

Low Smoke Zero Halogen (LSZH) Compound

Bedding   Colour:

Black

Screen:

Copper Tape

Outer  Sheath:

Outer  Sheath  Colour:

Low Smoke Zero Halogen (LSZH) Compound   with   Anti-Termite

Charateristic and  UV  Resistant

Black

ELECTRICAL CHARACTERISTICS

Operating      VoltageUo/U:               0.6/1kV

Operating    Temperature:                 -15℃to 90℃

Final  Short  Circuit  Temperature:    250℃
