FRT-XCSH CU/XLPE/LSZH/CT/LSZH/SWA/LSZH (4 CORES)

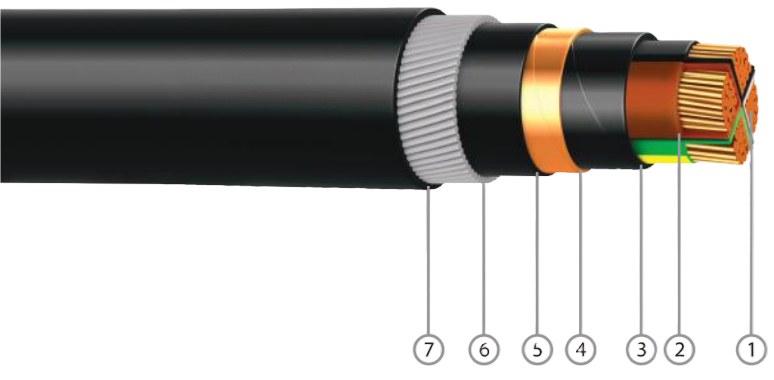

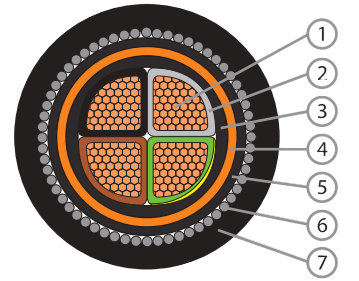

CONSTRUCTION

Conductor:                               Plain Annealed Copper,Class 2 Stranded

Circular,Compacted   or   Sectored

Insulation:                                Cross-linked    Polyethylene(XLPE)

Compound

Insulation    Colour:                 Brown,Black,Grey,Green/Yellow    or    Red,

Yellow,Blue,Green/Yellow   or    Others

Assembly:                               Cores  cabled  together  with  filler  and

covered   with   Polyester(PET)Tape

Bedding:                                      Low   Smoke   Zero   Halogen   (LSZH)

Compound Bedding   Colour:                    Black

Screen:                                    Copper  Tape

Separation        Sheath:                   Low     Smoke     Zero      Halogen(LSZH)

Compound Separation    Sheath    Colour:Black

Armour:                                   Galvanized  Steel Wire Armoured  (SWA)

Outer  Sheath:                        Low  Smoke  Zero  Halogen(LSZH)

Compound   with   Anti-Termite  Charateristic and  UV  Resistant

Outer  Sheath  Colour:            Black

ELECTRICAL CHARACTERISTICS

Operating   Voltage:                         0.6/1kV

Operating    Temperature:                -15℃ to 90℃

Final Short Circuit Temperature:  250℃

INSTALLATION REFERENCE

Min.Bending      Radius(mm):            8xcable   overall   diameter

Max.Pulling      Tension(N/mm²):      70
