FRT-XH CU/XLPE/LSZH (2 CORES-5 CORES) XLPE Insulated,LSZH Sheathed Cable,0.6/1kV,IEC60502

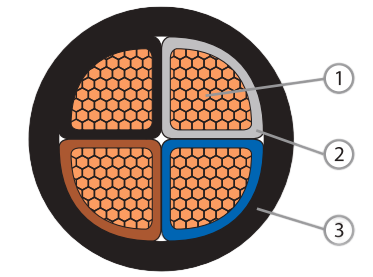

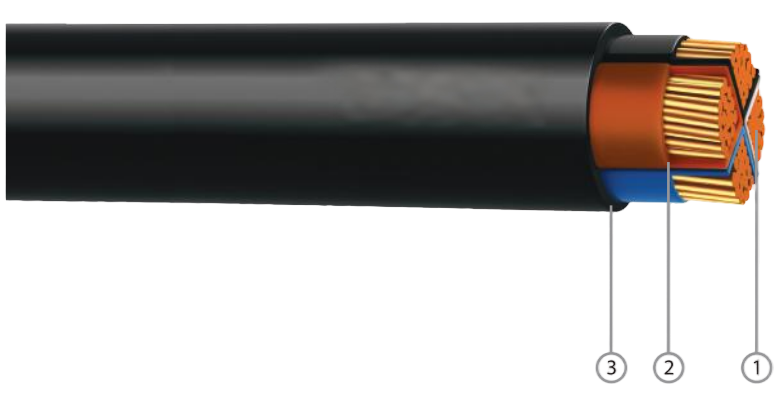

CONSTRUCTION

Conductor:Plain Annealed Copper,Class 2 Stranded Circular,Compacted  or  Sectored

Insulation:Cross-linked    Polyethylene(XLPE) Compound

Insulation    Colour:

2 Cores:Brown,Blue  or   Red,Black

3 Cores:Brown,Black,Grey    or    Red,Yellow,Blue

4 Cores:Brown,Black,Grey,Blue   or   Red,Yellow, Blue,Black

5 Cores:Brown,Black,Grey,Blue,Green/Yellow      or Red,Yellow,Blue,Black,Green/Yellow      orWhite  with   Black  numbering  or  Othes

Assembly:Cores  cabled  together  with  filler  and     covered  with   Polyester(PET)Tape

Outer Sheath:Low Smoke Zero Halogen (LSZH) Compound  with Anti-Termite Charateristic and UV Resistant

Outer  Sheath  Colour:Black

ELECTRICAL CHARACTERISTICS

Operating   Voltage:                          0.6/1kV

Operating    Temperature:                 -15℃ to  90℃

Final  Short  Circuit  Temperature:    250℃

INSTALLATION     REFERENCE

Min.Bending         Radius(mm):             8xcable       overalldiameter

Max.Pulling      Tension(N/mm²):      50
