FRT-XH CU/XLPE/LSZH (MULTI-CORES) XLPE Insulated,LSZH Sheathed Cable,0.6/1kV,IEC60502

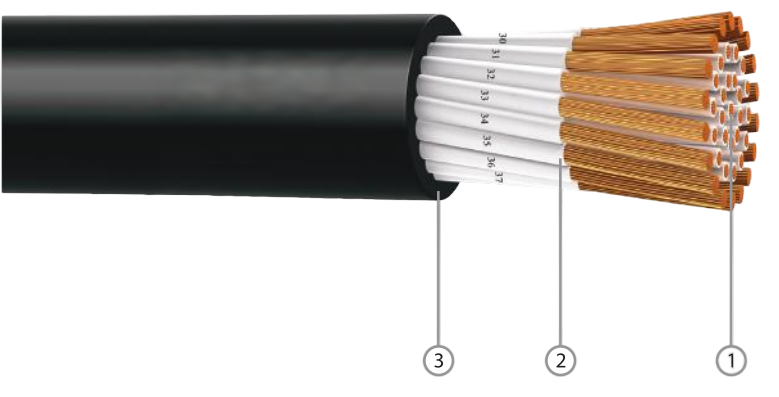

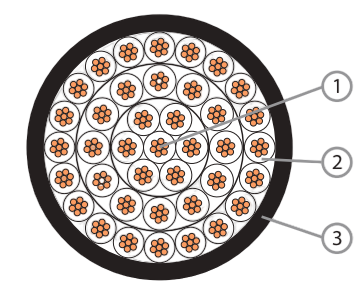

Component 1.Plain Annealed Copper Wire 2.Cross-linked Polyethylene Compound 3.Low Smoke Zero Halogen (LSZH)Compound
CONSTRUCTION Conductor:
Insulation:
Insulation Colour: Assembly:
Outer Sheath:
Outer Sheath Colour: |
Plain Annealed CopperClass 2 Stranded Circular or Compacted Cross-linked Polyethylene(XLPE) Compound White with Black numbering or Others Cores cabled together and covered with Polyester(PET)Tape Low Smoke Zero Halogen (LSZH) Compound with Anti-Termite Charateristic and UV Resistant Black |
ELECTRICAL CHARACTERISTICS
Operating Voltage: 0.6/1kV
Operating Temperature: -15℃ to 90℃
Final Short Circuit Temperature: 250℃
INSTALLATION REFERENCE
Min.Bending Radius(mm): 8xcable overalldiameter
Max.Pulling Tension(N/mm²): 50
