FRT-XSH CU/XLPE/LSZH/SWA/LSZH (2CORES-5 CORES) Power Cable

ELECTRICAL    CHARACTERISTICS

Operating      Voltage:                           0.6/1kV

Operating    Temperature:                 -15℃ to  90℃

Final    Short    Circuit   Temperature:250℃

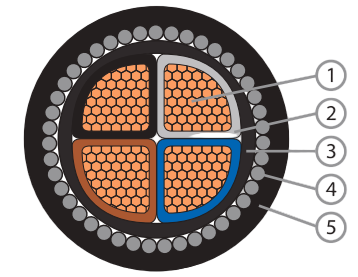

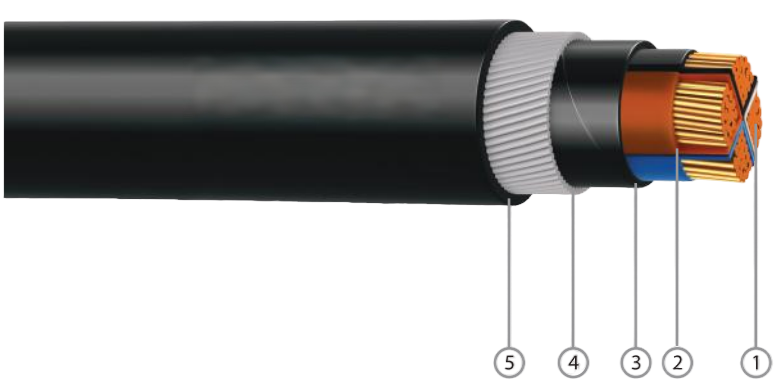

CONSTRUCTION

Conductor:

Plain Annealed Copper,Class 2 Stranded Circular,Compacted   or   Sectored

Insulation:

Cross-linked    Polyethylene(XLPE) Compound

Insulation    Colour:

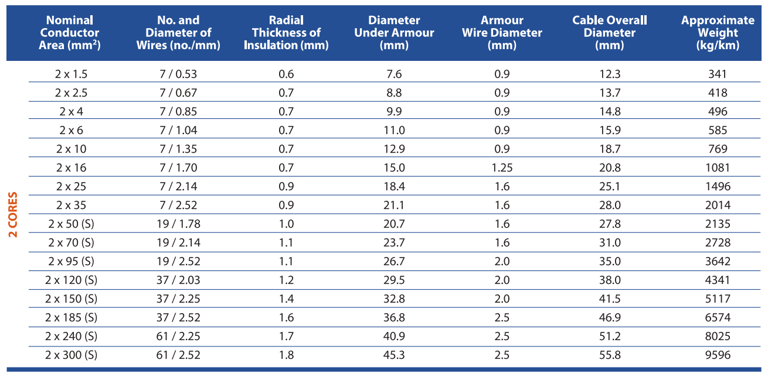

2 Cores:

Brown,Blue  or  Red,Black

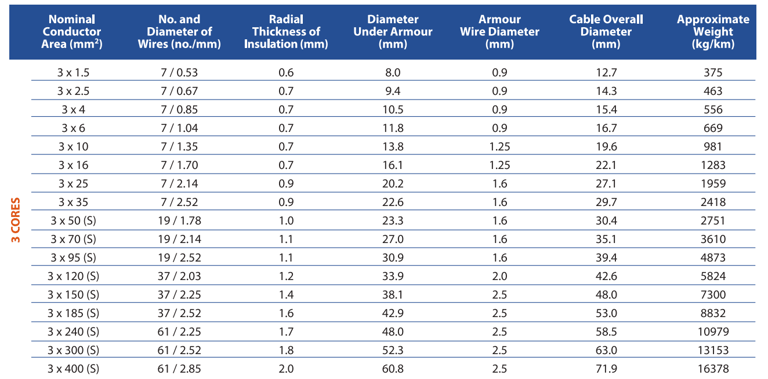

3 Cores:

Brown,Black,Grey   or    Red,Yellow,Blue

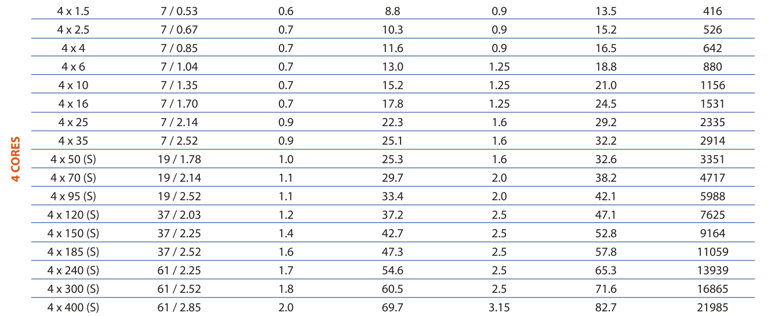

4 Cores:

Brown,Black,Grey,Blue    or    Red,Yellow,

Assembly:

Blue,Black

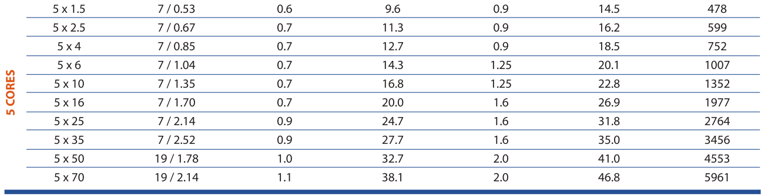

5 Cores:

Brown,Black,Grey,Blue,Green/Red,

Yellow,Blue,Black,Green/Yellow  or  White with  Black  numbering  or  Others

Cores  cabled  together  with  filler  and covered   with   Polyester(PET)Tape
