FRT-XSH CU/XLPE/LSZH/SWA/LSZH (MULTI- CORES) Power Cable

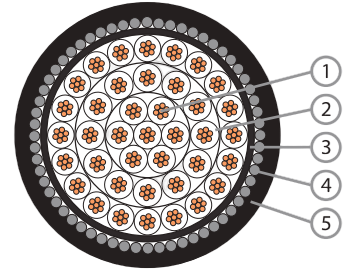

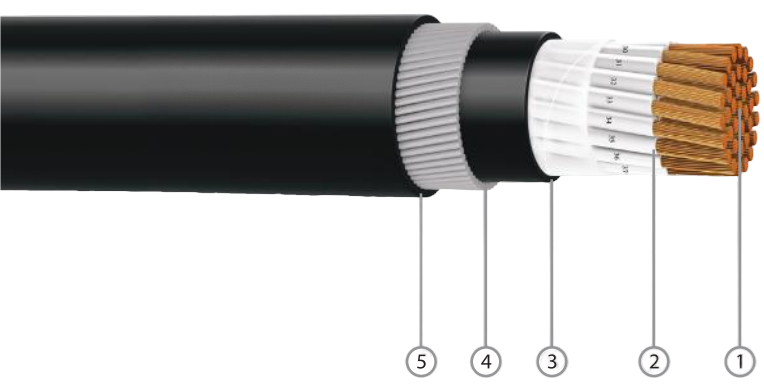

CONSTRUCTION

Conductor:

Plain  Annealed  CopperClass  2  Stranded Circular  or  Compacted

Insulation:

Cross-linked    Polyethylene(XLPE) Compound

Insulation    Colour:

Assembly:

White  with  Black  numbering  or  Others

Cores  cabled  together  and  covered  with Polyester(PET)Tape

Bedding:

Low Smoke Zero Halogen (LSZH) Compound

Bedding    Colour:

Armour:

Black

Galvanized Steel Wire Armoured (SWA)

Outer   Sheath:

Low Smoke Zero Halogen (LSZH) Compound   with   Anti-Termite

Charateristic and  UV  Resistant

Outer  Sheath  Colour:

Black

ELECTRICAL CHARACTERISTICS

Operating   Voltage:                         0.6/1kV

Operating    Temperature:                 -15℃ to  90℃

Final    Short    Circuit   Temperature:250℃
