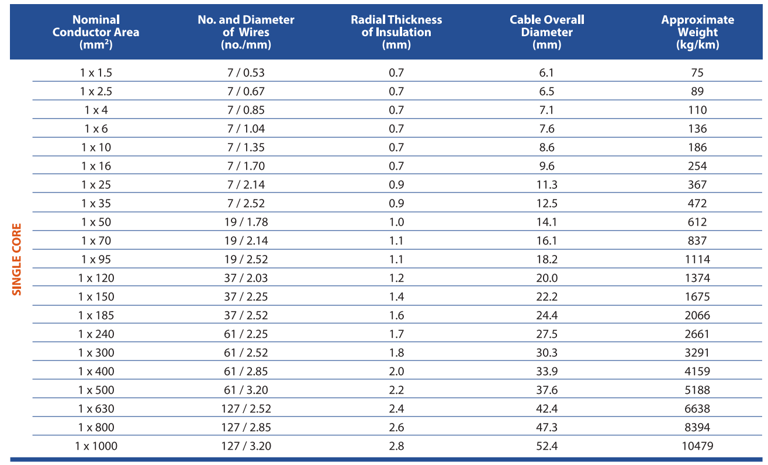

FRT－XH CU/XLPE/LSZH (SINGLE CORE) XLPE Insulated,LSZH Sheathed Cable,0.6/1kV,IEC60502

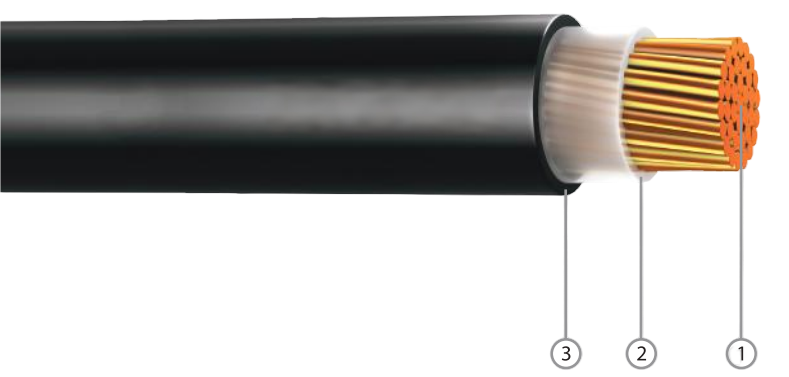

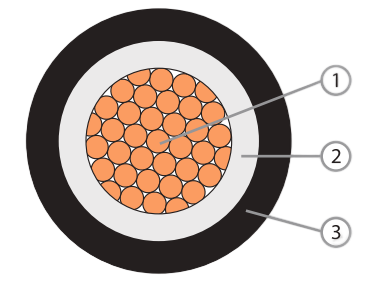

CONSTRUCTION

Conductor:Plain Annealed Copper,Class 2 Stranded Circular or Compacted

Insulation:Cross-linked Polyethylene (XLPE) Compound

Insulation  Colour:Natural

Outer Sheath:Low Smoke Zero Halogen (LSZH) Compound with Anti-Termite Charateristic and UV Resistant

Outer Sheath Colour:Black

INSTALLATION REFERENCE

Min.Bending   Radius(mm):           8xcable    overalldiameter

Max.Pulling   Tension(N/mm²):      50

ELECTRICAL CHARACTERISTICS

Operaing  Voltage:                       0.6/1kV

Operating Temperature:               -15℃ to 90℃

Final  Short  Circuit  Temperature:250℃
