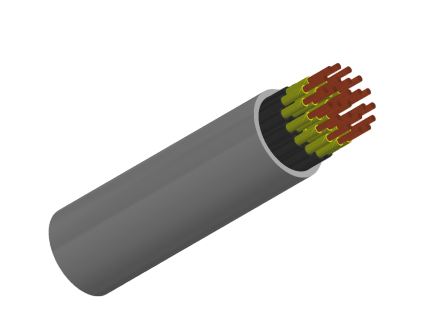

FTG10(O)M1

Application and Description

These cables are for all those safety systems which, of necessity, must continue to operate even when a fire is in progress. In particular, suitable for smoke detection systems, fire-extinguishing systems, power supply to escalator and automatic doors, power supply to emergency lighting, alarm systems, ventilation plants, etc. Indoor and outdoor fixed laying on wall and racks.

Standard and Approval

EN 50200

CEI 20-11

CEI 20-22 III

CEI 20-29

CEI 20-35

CEI 20-36

CEI 20-37

CEI 20-45

UNEL 00722

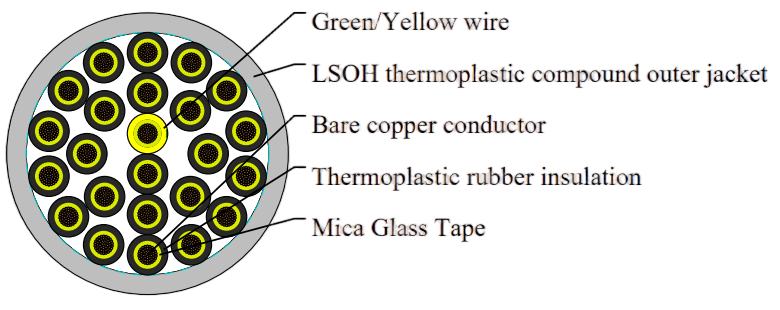

Cable Construction

Flexible bare copper conductor to CEI 20-29 cl.5

Glass or mica tape

G10 quality thermoplastic rubber insulation to CEI 20-11

Type M1 thermoplastic LSOH compound outer jacket

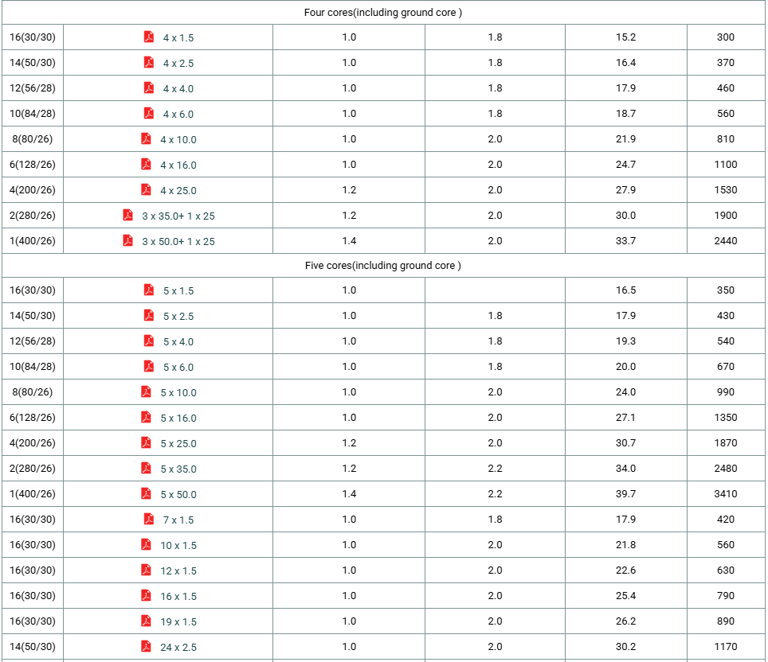

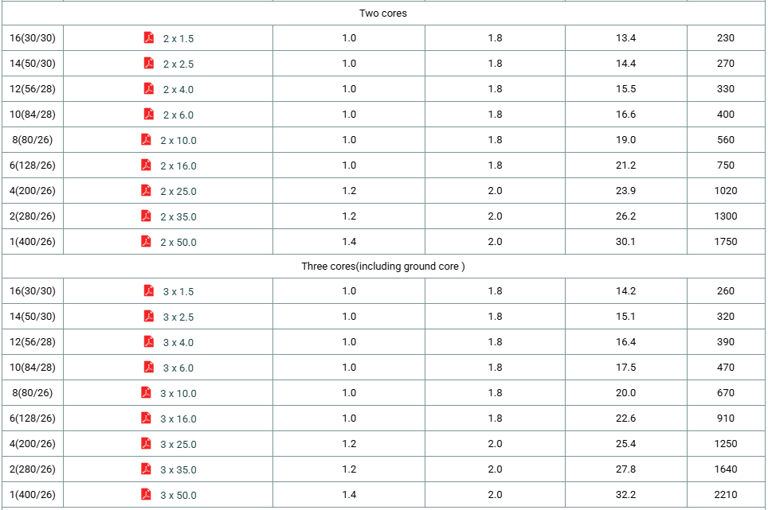

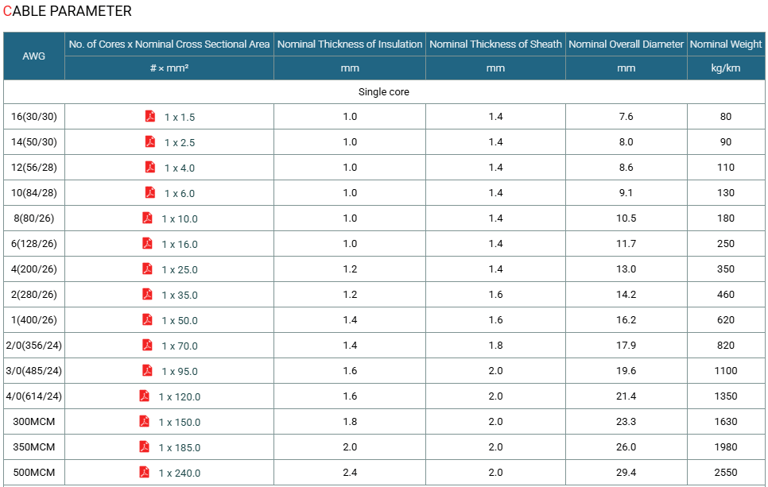

Technical Characteristics
