FXQJ 1kV Cable
APPLICATION The FXQJ cable is suitable for use for fixed installation indoors and outdoors in air, ground and water.
APPLICATION The FXQJ cable is suitable for use for fixed installation indoors and outdoors in air, ground and water. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Temperature Rating Minimum installation Temp: -10°C Operating Temp: -40°C to +70°C Short-circuit max. conductor temperature: 250°C Minimum Bending Radius Installation: 8 x overall diameter Operation: 12 x overall diameter |

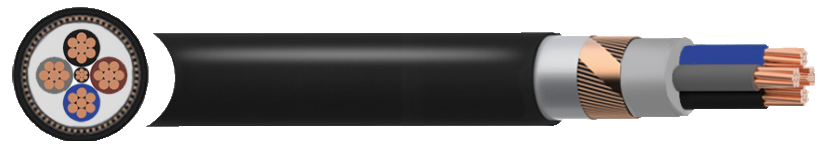

CONSTRUCTION
Conductor
Circular Stranded Copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
HFFR (Halogen free flame retardant)
Screen
Annealed copper wire and tape in open helix
Outer Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
4 core: Blue ● Brown ● Black ●Grey
Sheath Colour
● Black
