FXQJ EMC 1kV Cable
The FXQJ EMC 1kV cable may be used for fixed installation indoors and outdoors in air, ground and water and it is suitable for use in industrial facilities and other establishments there EMI may cause problems.
APPLICATION The FXQJ EMC 1kV cable may be used for fixed installation indoors and outdoors in air, ground and water and it is suitable for use in industrial facilities and other establishments there EMI may cause problems. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Temperature Rating Minimum installation Temp: -10°C Operating Temp: -40°C to +90°C Minimum Bending Radius 8 x overall diameter |

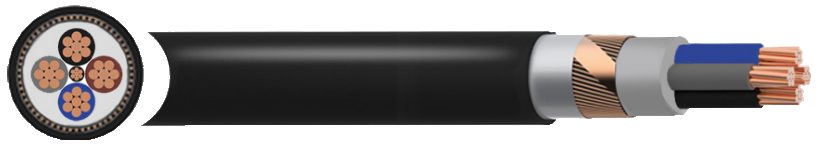

CONSTRUCTION
Conductor
Up to 35mm2 : Circular Stranded Copper
Above 35mm2 : Shaped Stranded Copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
HFFR (Halogen free flame retardant)
Tape
Copper
Screen
Annealed copper wire
Outer Sheath
HFFR (Halogen free flame retardant)
Core Identification
3 core: ● Brown ● Black Grey
4 core: ● Brown ● Black ● Grey ● Blue
Sheath Colour
● Black
