FXV

Application and Description

These cables for energy distribution are suitable for all types of low voltage industrial-type connections. in urban grids, building installations. etc. Its high flexibility makes the installation process substantially easier and as a result is particularly suitable for use in difficult layouts. They can be buried or installed in a tube as well as outdoors. They are can also be used for street lighting, power supply of buildings, ship installations and generator installations. Lastly, these cables can withstand damp conditions including total immersion in water.

Standard and Approval

IEC 60502-1

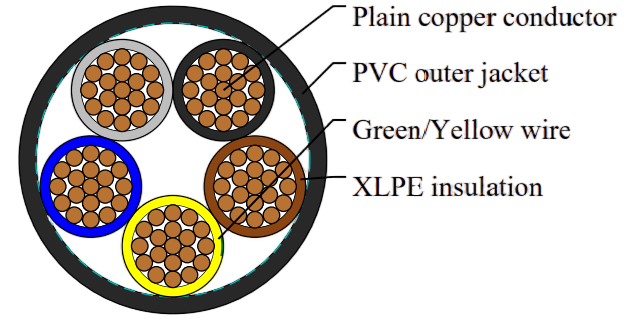

Cable Construction

Flexible plain copper strands

Strands to VDE-0295 Class-5, NP 2363 Class-5

XLPE (Cross-Linked Polyethylene) insulation to IEC60502

Color coded to HD 308

Flexible PVC (Polyvinyl Chloride) jacket

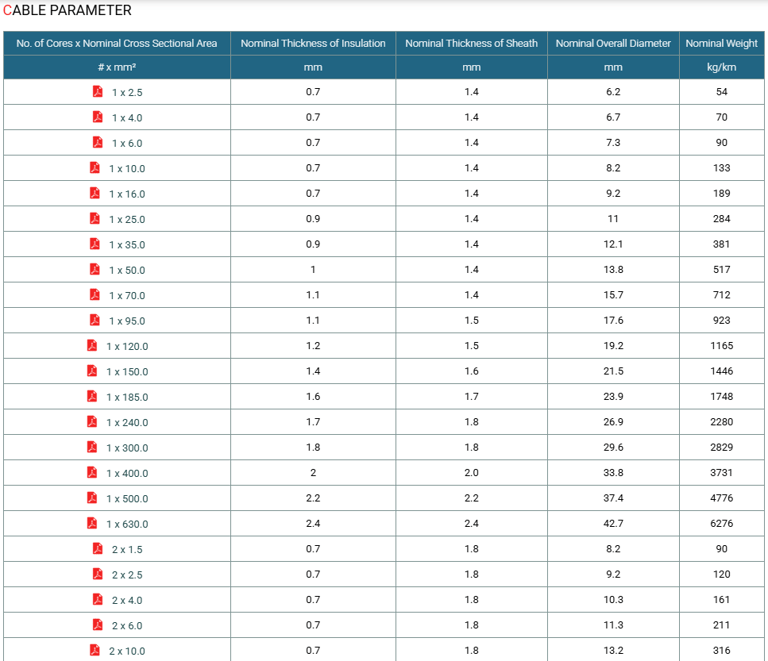

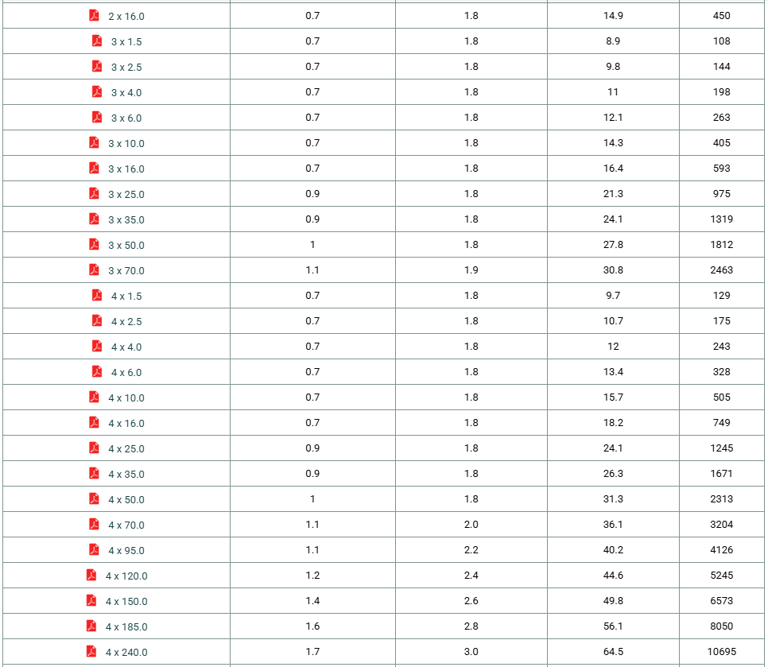

Technical Characteristics
