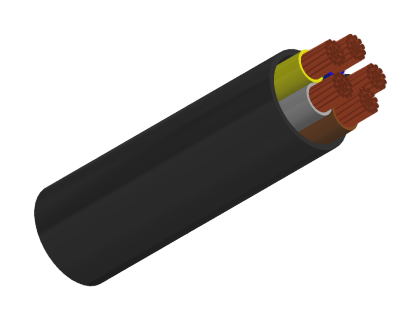

FXZ1

Cable

Application and Description

These cables with zero Halogen are high security cables. In case of fire, they do not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in public places such as: hospitals, schools, museums, airports, bus terminals, shops in general, tunnels, the underground, etc., as well as in calculation centres, offices, production plants, laboratories, etc.

Standard and Approval

IEC60502-1

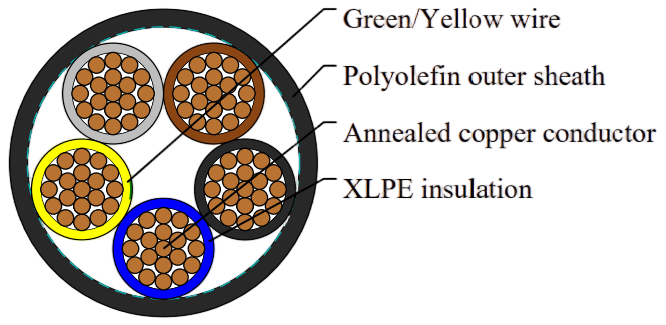

Cable Construction

Flexible electrolytic annealed copper conductor

Class 5 in accordance with NP 2363

XLPE insulation type DIX 3 according to HD603

Color coded to HD 308

LOSH polyolephine outer sheath

Technical Characteristics

Working Voltage	600/1000 volts
Test voltage	3500 volts
Minimum bending radius	10 x Ø
Working temperature	-15ºC to +90ºC
Short-circuit temperature	+250ºC
Insulation resistance	1000 MΩ x km
Halogen free	IEC 60754-1, EN 50267-2-1
No corrosive gases	IEC 60754-2, EN 50267-2-2
No toxic gases	NES 02-713, NF X 70-100
Low smoke density	IEC 61034, EN 50268-2
Flame retardant	IEC 60332-1, EN 50265-2-1
Non-flame propagating	IEC 60332-3, EN 50266-2
