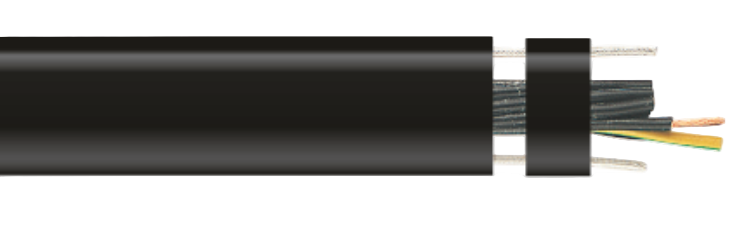

FYMYTW Control Cable for Lift, Crane, and Conveyor Facilities
Steel-Supported Cable for Teach Pads and High Rack Applications, Suitable for Indoor and Outdoor Use Down to -25°C
$8.00

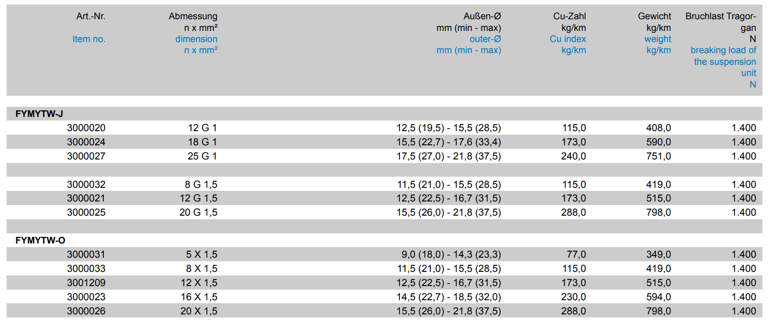

Structure & Specifications | |

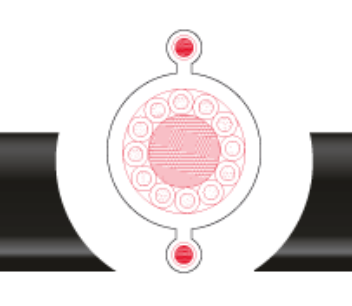

conductor material conductor class core insulation core identification stranding supporting element outer sheath sheath colour printing rated voltage testing voltage current carrying capacity min. bending radius fixed min. bending radius moved operat. temp. fixed min/max | bare copper strand acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5 Thermoplast black or white with numerals with or without GNYE cores stranded in layers 2 steel supporting elements oppositely integrated into the outer sheath PVC black, RAL 9005 yes Uo/U: 300/500 V 2 kV acc. to DIN VDE, see Technical Guideline 12 x d 12 x d -25 °C / +60 °C |
operat. temp. moved min/max -25 °C / +60 °C temp. at conductor +70 °C burning behavior self-extinguishing and flame retardant acc. to IEC 60332-1 standard similar to DIN VDE 0250 | |
Application |
control cable for teach pads and also for lift, crane and conveyor facilities, in high rack facilities and in port facilities. Suitable for indoor use and outdoor use up to -25° C. |
Special Features |
• with steel-supporting elements • free from lacquer damaging substances and silicone (during production) |
Remarks |
• conform to RoHS • free from axial torsion • capable for high load bearing capacity • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE • We are pleased to produce special versions, other dimensions, core and jacket co- |
