GVCSTV LSLH-C1 Control Cable
GVCSTV LSLH C1 cables are fire retardant in compliance with the requirements of the NFC 32070 C1 standard.
APPLICATION These cables are used for flexible connections requiring an anti-inductive screen (EMC). GVCSTV LSLH C1 cables are fire retardant in compliance with the requirements of the NFC 32070 C1 standard. |
CHARACTERISTICS Voltage Rating 0.6/1kV Temperature Rating Fixed: -10°C + 60°C Maximum conductor temperature : +70°C Minimum Bending Radius 7.5 x overall diameter |

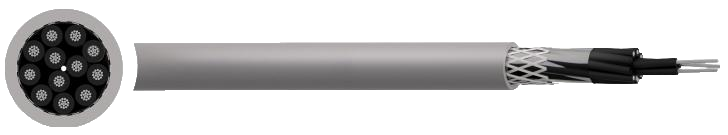

CONSTRUCTION
Conductor
Flexible tinned copper
Insulation
Fire retardant thermoplastic compound
Separator
Separator Tape
Screen
TCWB (Tinned Copper Wire Braid)
Sheath
PVC (Polyvinyl Chloride)
Sheath Colour
Grey
