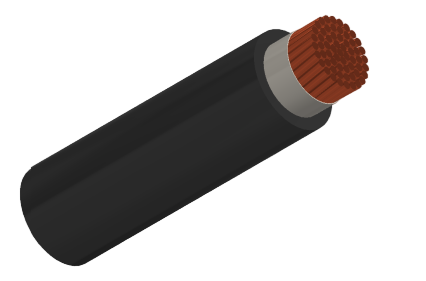

H01N2-D/E (NSKFFÖU)

Application and Description

These cables are used as a connection between the welding generator, the hand-electrode and the work piece. For use in the automobile industry, ship building, transport and conveyor systems, tool making machinery, welding robots etc.

These cables retain their high flexibility even under influence of ozone, light, oxygen, protective gases, oil and petrol. Robust cable structure of these cables makes them resistant to low and high temperature, fire, ozone and radiation, oils, acids, fats and petrols.

These cables are also ideal for outside installation in dry, moist and wet areas.

Standard and Approval

• HD22.6 S2

• VDE-0282 Part-6

• IEC 60332.3

• IEC 60754.1

• UNEL 35368

• CEI 20-22 II

• CEI 20-38

• CE low voltage directive 73/23/EEC & 93/68/EEC

• ROHS compliant

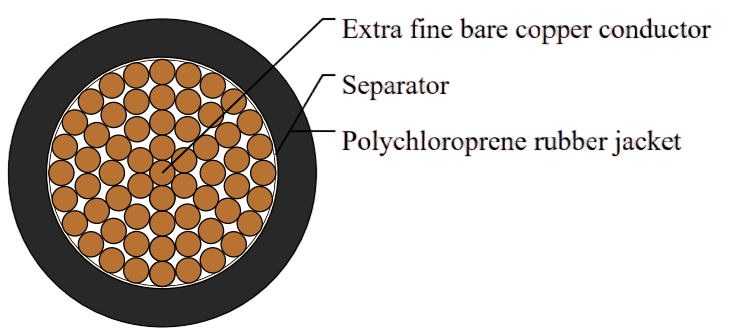

Cable Construction

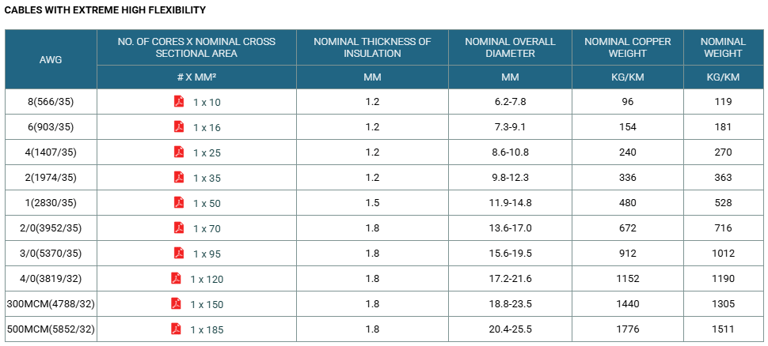

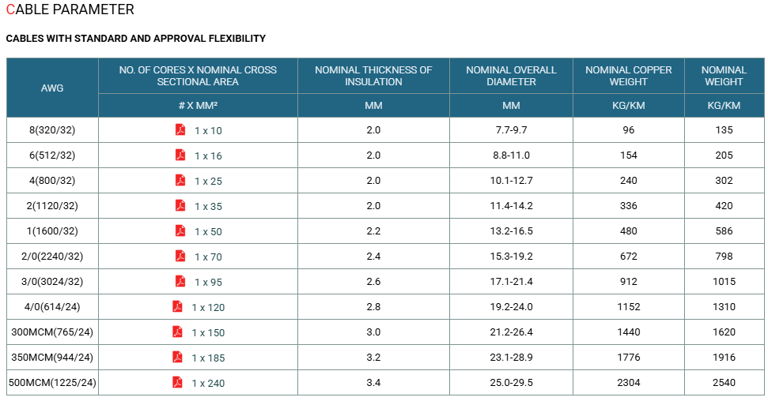

Technical Characteristics
