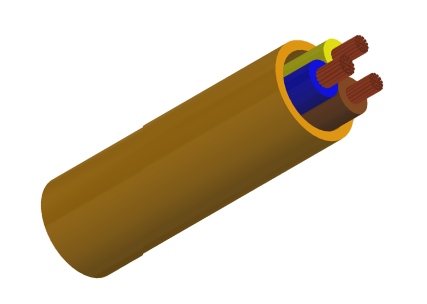

H03V2V2-F / H03V2V2H2-F
Cable
Application and Description
These cables are suitable for domestic premises, kitchen, office for light service or light portable apparatuses. With their special insulation and sheath compounds these cables are adapt for apparatus in kitchen and heating and for use in zones with high temperatures (like lighting system apparatuses) without contact with warm parts and radiations. Unsuitable for outdoor use, in industrial and agricultural buildings or non-domestic portable tools.
The maximum conductor temperature in normal use:90°C.While high temperature use, skin contact must be avoided.
Standard and Approval
CEI 20-20/12, CEI 20-35 (EN60332-1) / CEI 20-37 (EN50267), EN50265-2-1

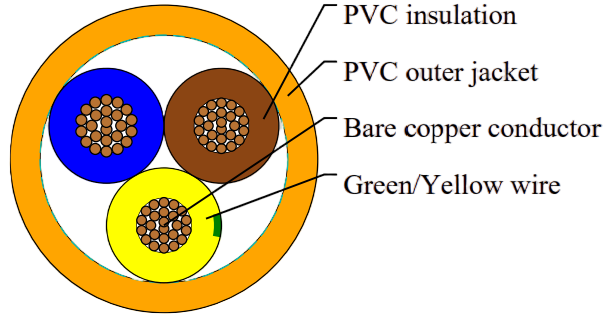

Cable Construction
Bare copper fine wire conductor |
Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383 |
PVC core insulation TI3 to VDE-0281 Part 1 |
Color coded to VDE-0293-308 |
PVC outer jacket TM3 |
Technical Characteristics
Working voltage | 300/300 volts |
Test voltage | 3000 volts |
Flexing bending radius | 15 x O |
Static bending radius | 4 x O |
Flexing temperature | +5oC to +90oC |
Static temperature | -40oC to +90oC |
Short circuit temperature | +160oC |
Flame retardant | IEC 60332.1 |
Insulation resistance | 20 MΩ x km |
