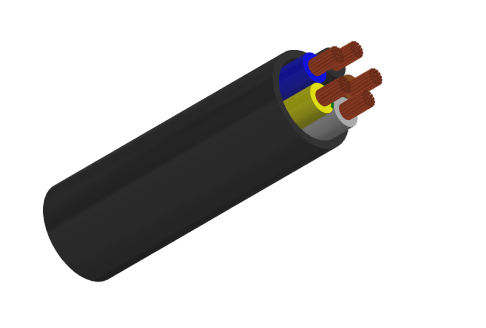

H03VV-F/H03VVH2-F

Application and Description

These cable types are especially suited for use on small appliances with low mechanical stress and for connection for light household appliances, e.g. kitchen utensils, desk lamps, floor lamps, vacuum cleaners, office machines, radios, etc. As far as these cables are admitted to the relevant specifications of the equipment, They are not permitted for use with cooking or heating apparatus. Cables with cross section 0.75 mm² are not suitable for outdoor use or use of industrial or farmer machineries. Max operating voltage in single or three phase system is Uo/U 330/330 volts. In a direct current system max operating voltage is Uo/U 495/495 volts.

Standard and Approval

CEI 20-20/5

CEI 20-35 (EN60332-1)

CEI 20-52

CE low voltage directive 73/23/EEC & 93/68/EEC

ROHS compliant

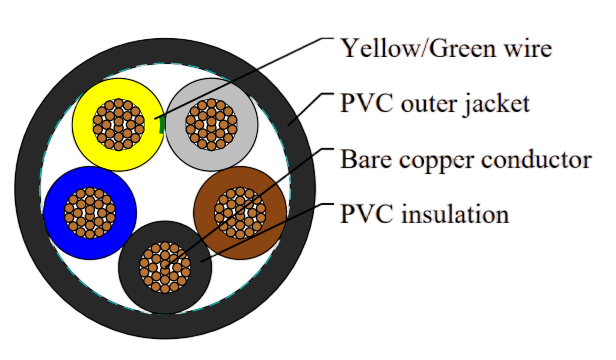

Cable Construction

Bare copper fine wire conductor

Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383

PVC core insulation TI2 to VDE-0281 Part 1

Color coded to VDE-0293-308

Green-yellow grounding (3 conductors and above)

PVC outer jacket TM2

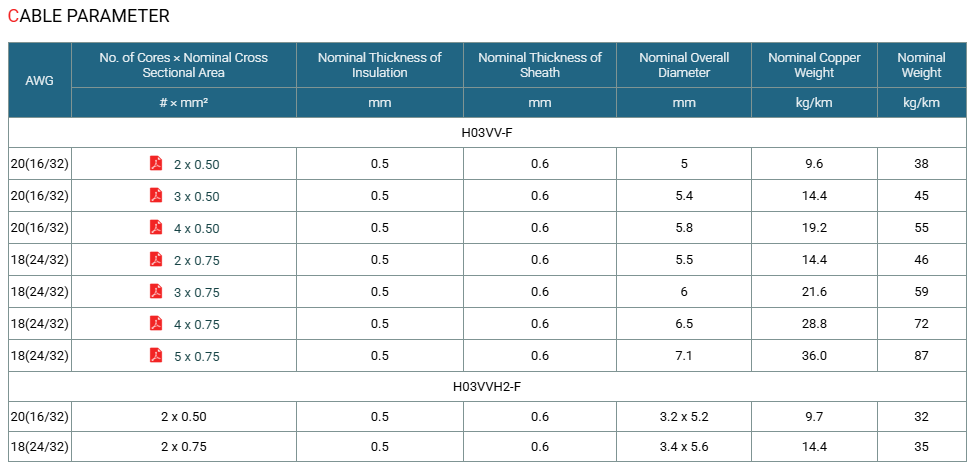

Technical Characteristics
